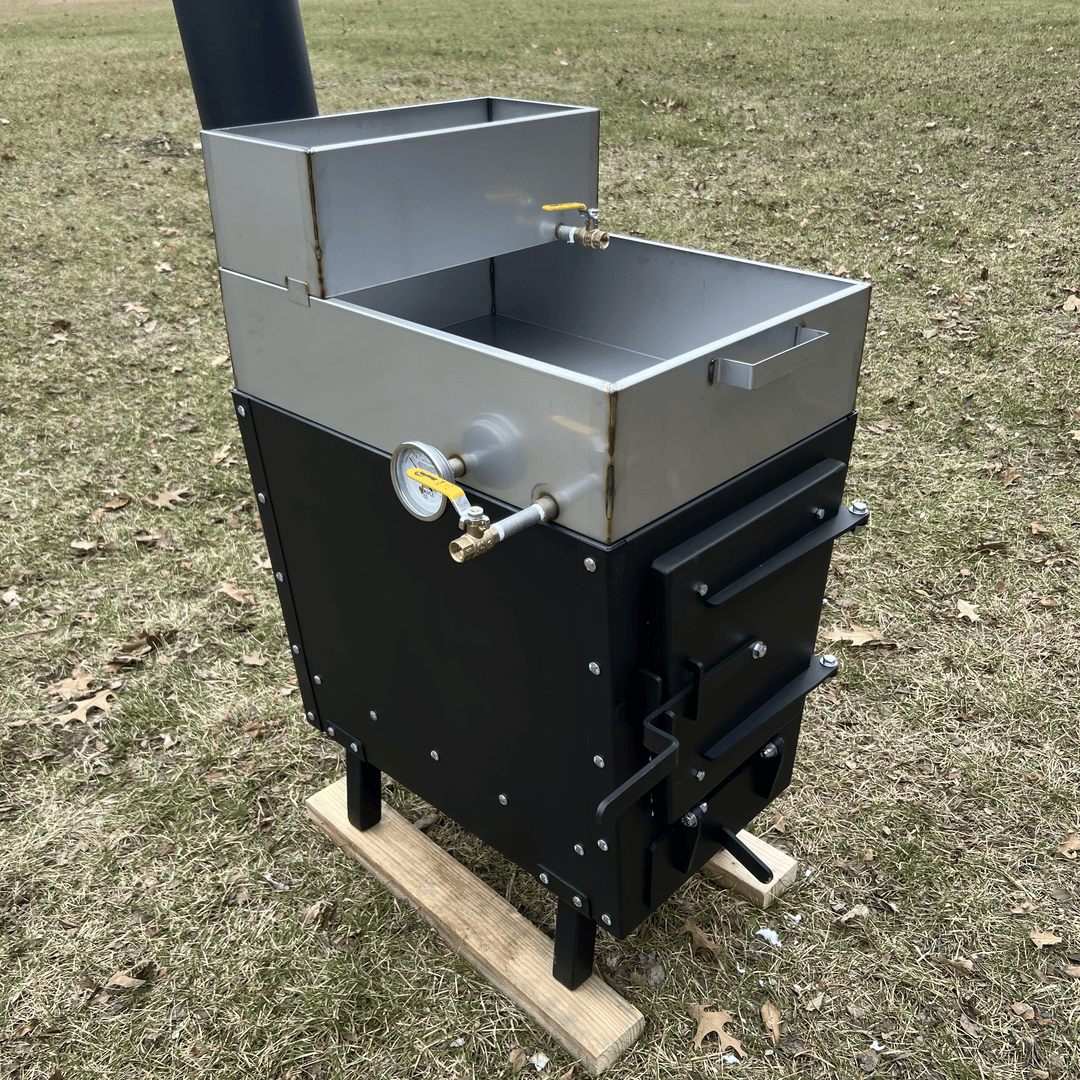

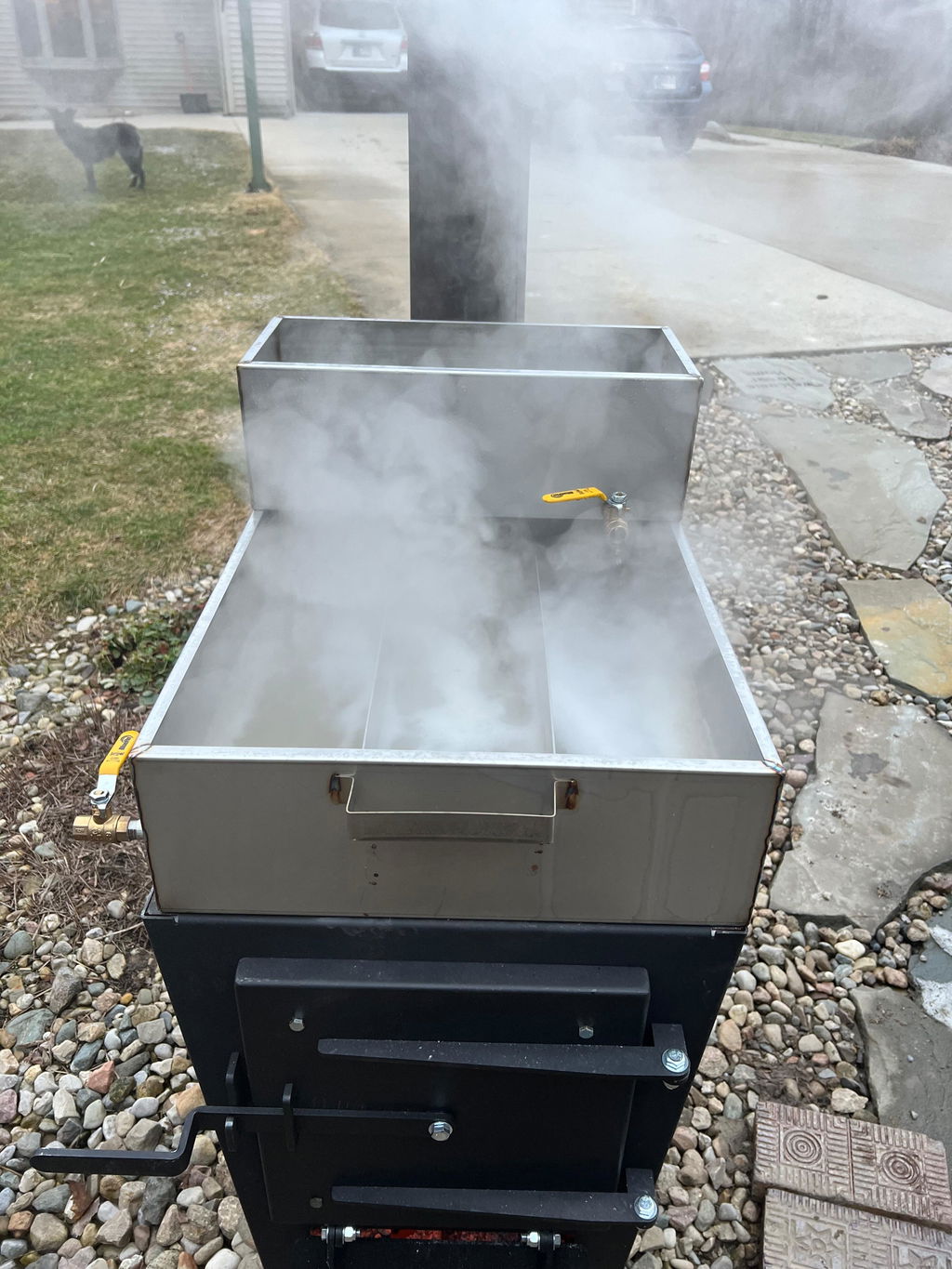

24 x 18" Flat Pan Maple Syrup Evaporator

24 x 18" Flat Pan Maple Syrup Evaporator

Flat Pan or Divided Pan?:

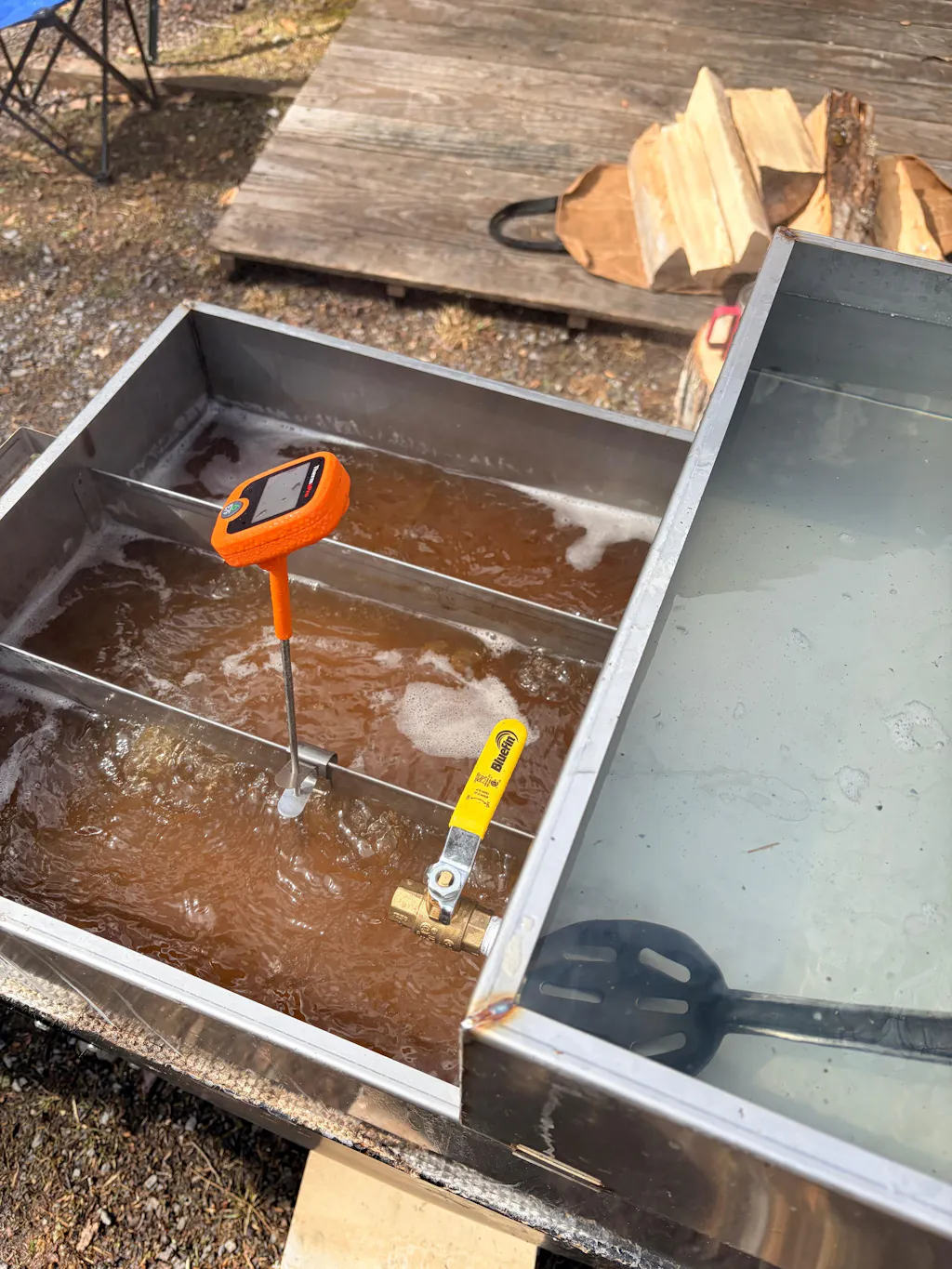

Flat Pan (+$0) Divided Pan (+$125)

$900.00

$1,050.00

Save $150.00

📞 Questions? Call or text Charlie Bassett anytime at 231-375-7197

Looking to make your own syrup this season without spending a fortune?

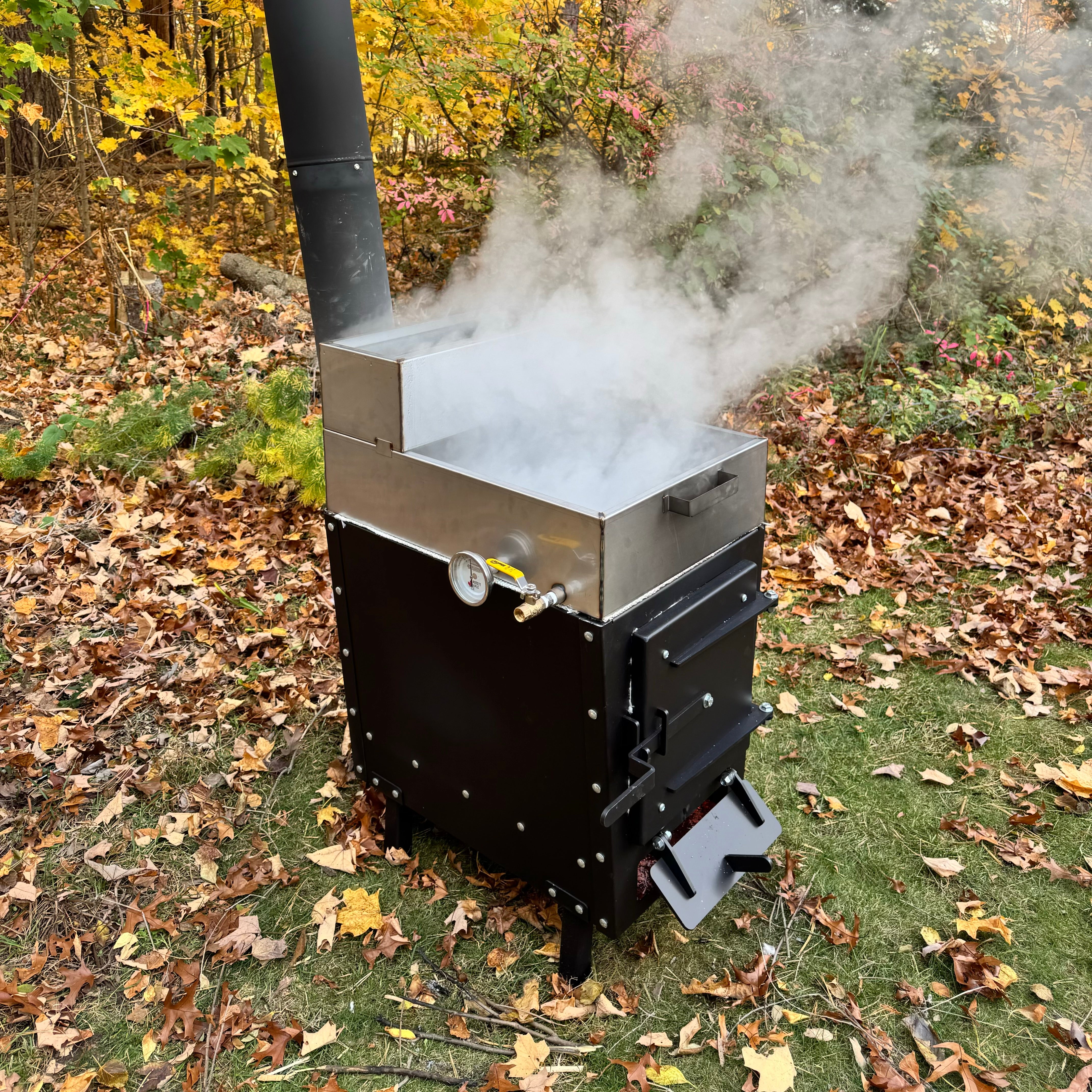

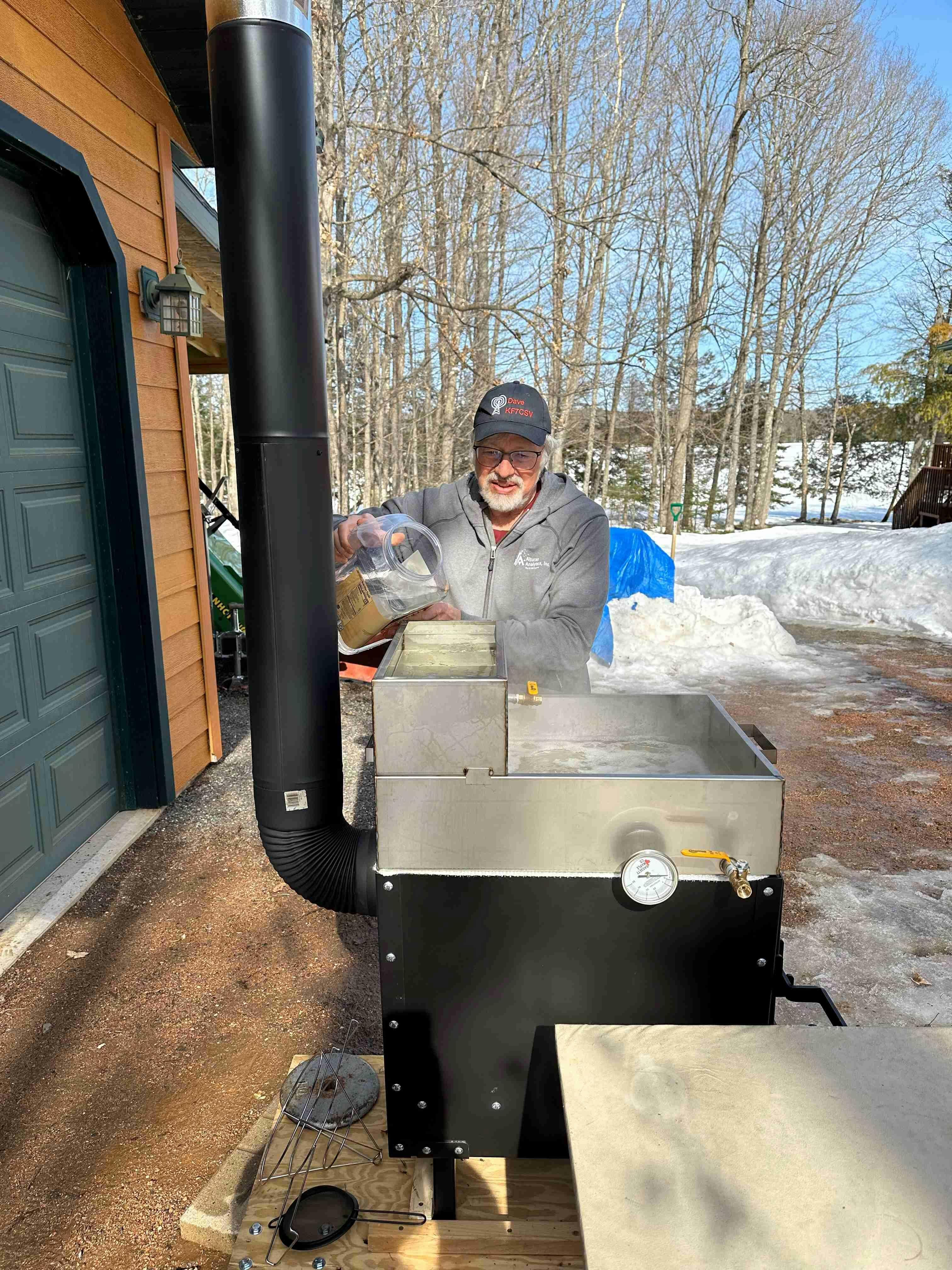

The Bassett Maple Co. 24 x 18" Evaporator is perfect for homesteaders and backyard producers who want something simple, affordable, efficient, and built right.

Ideal for 3 to 40 taps
Average boil rate: 4.5 gallons/hour

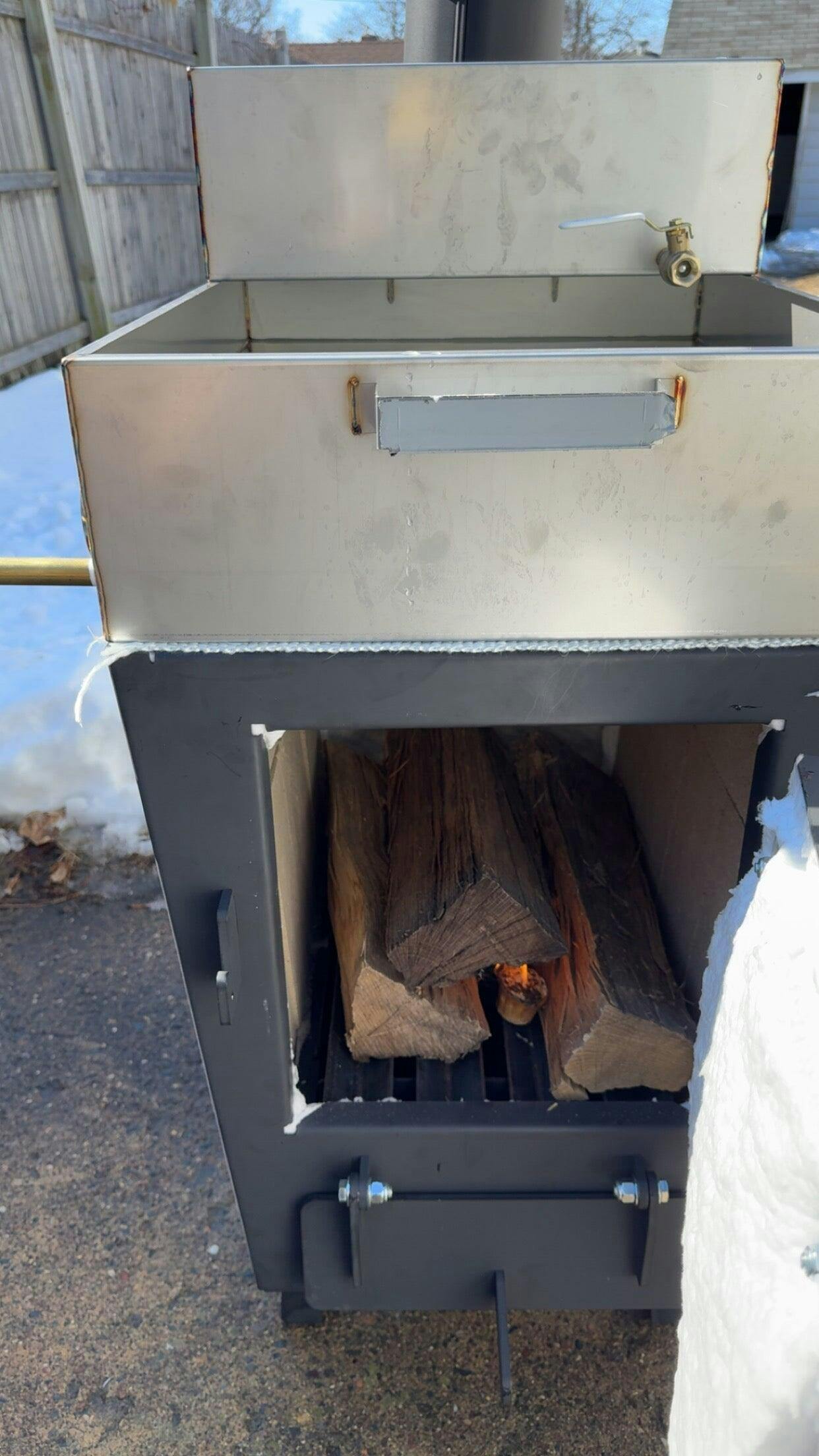

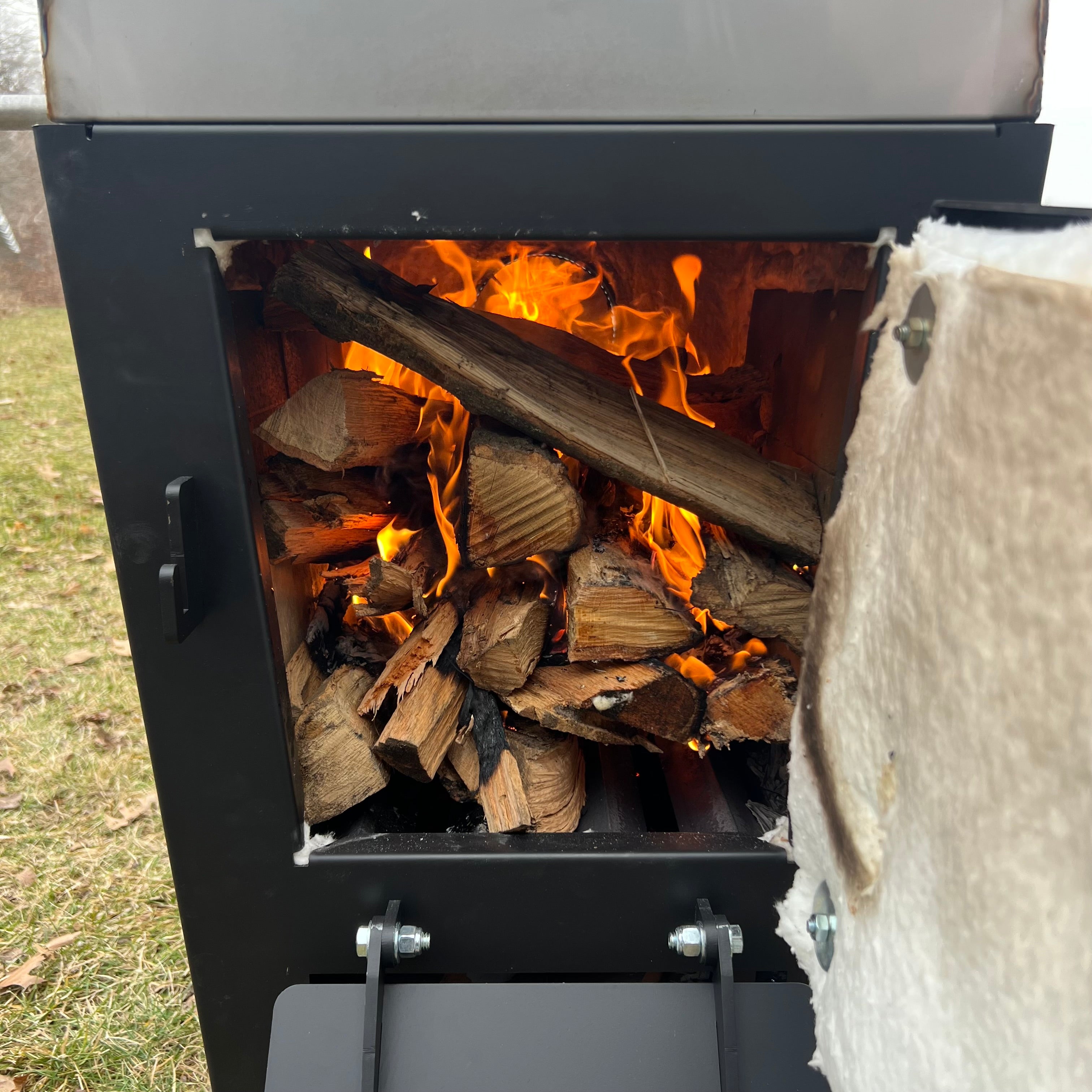

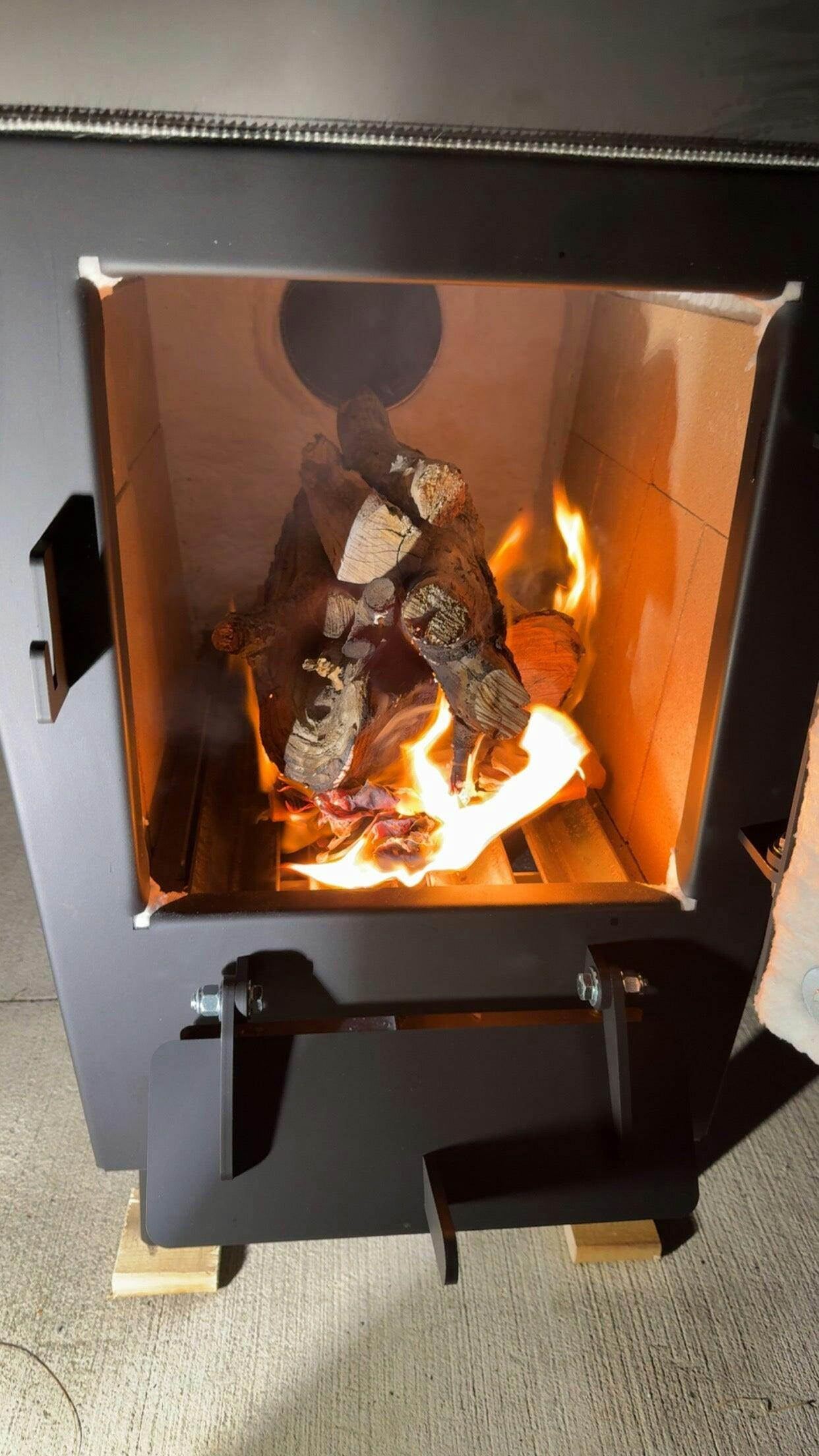

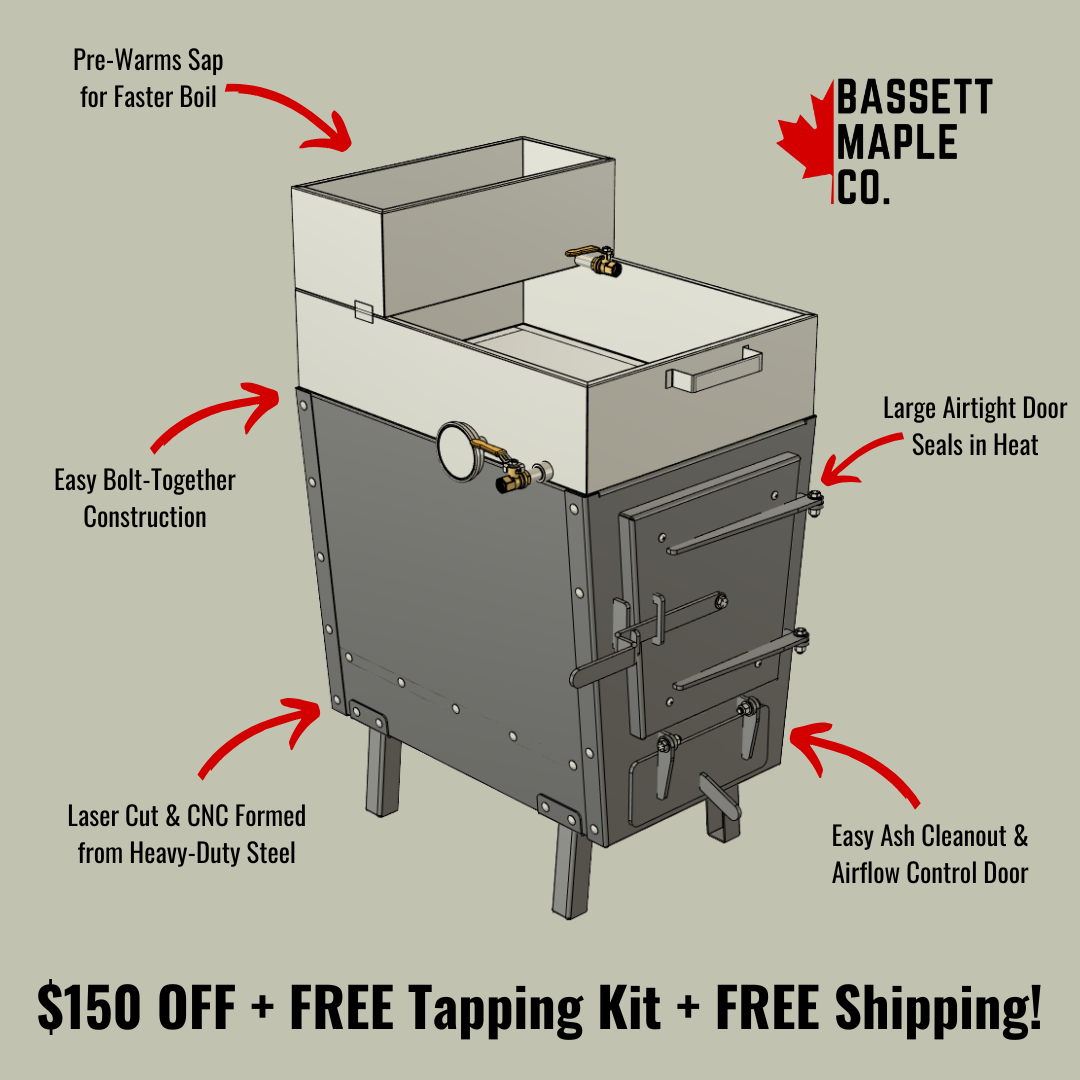

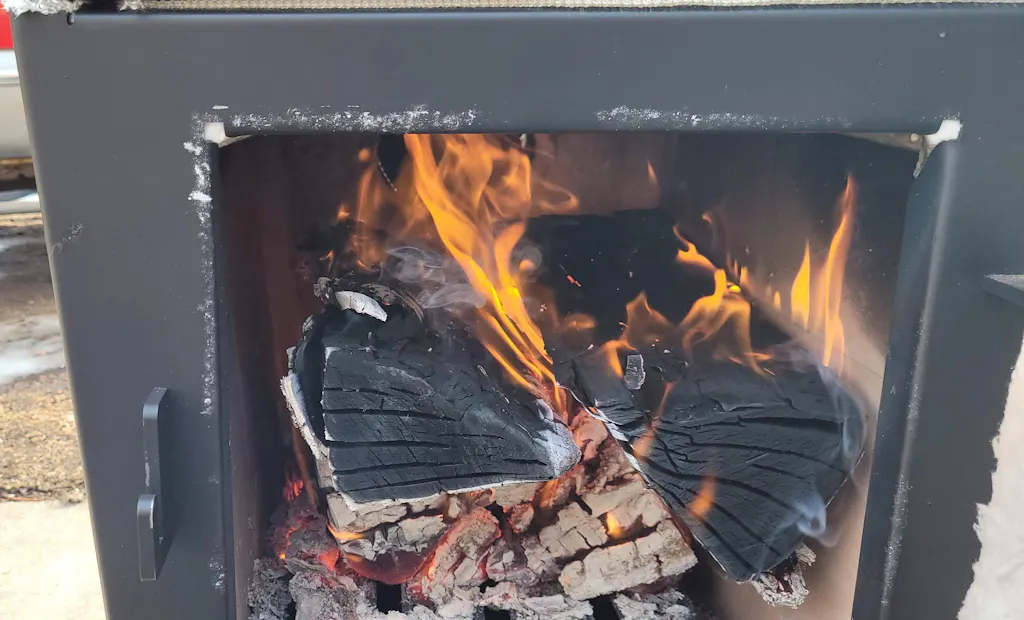

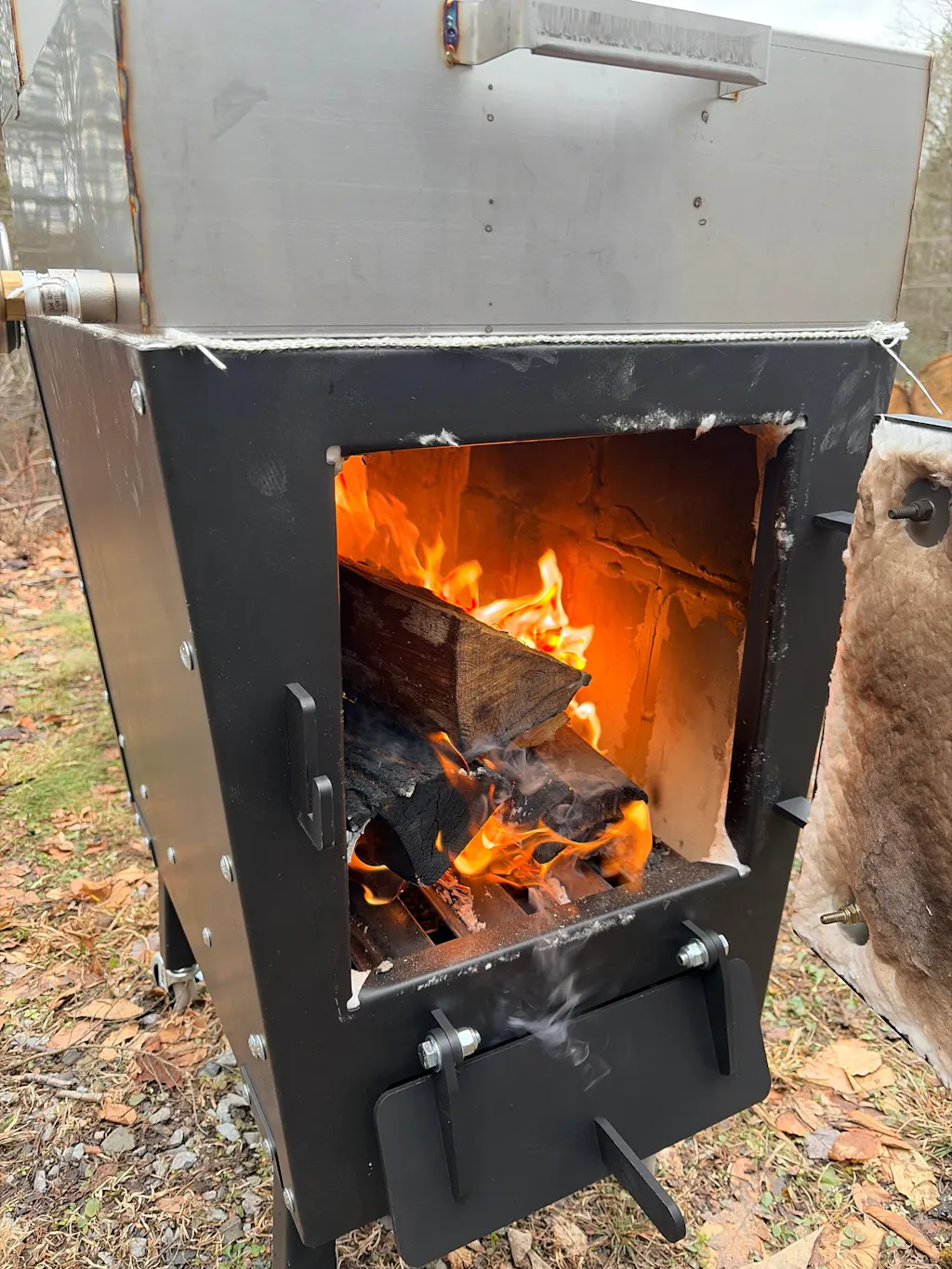

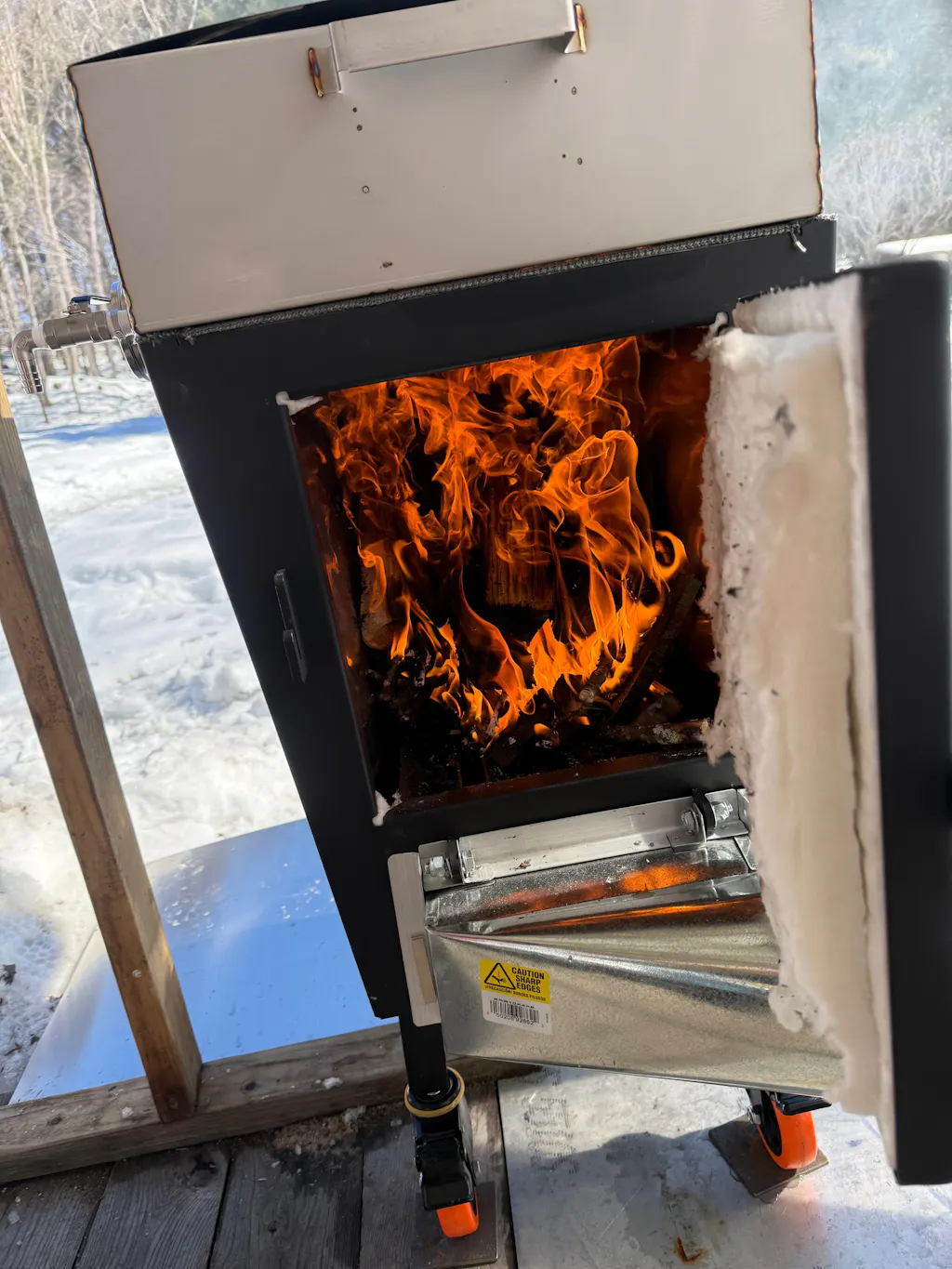

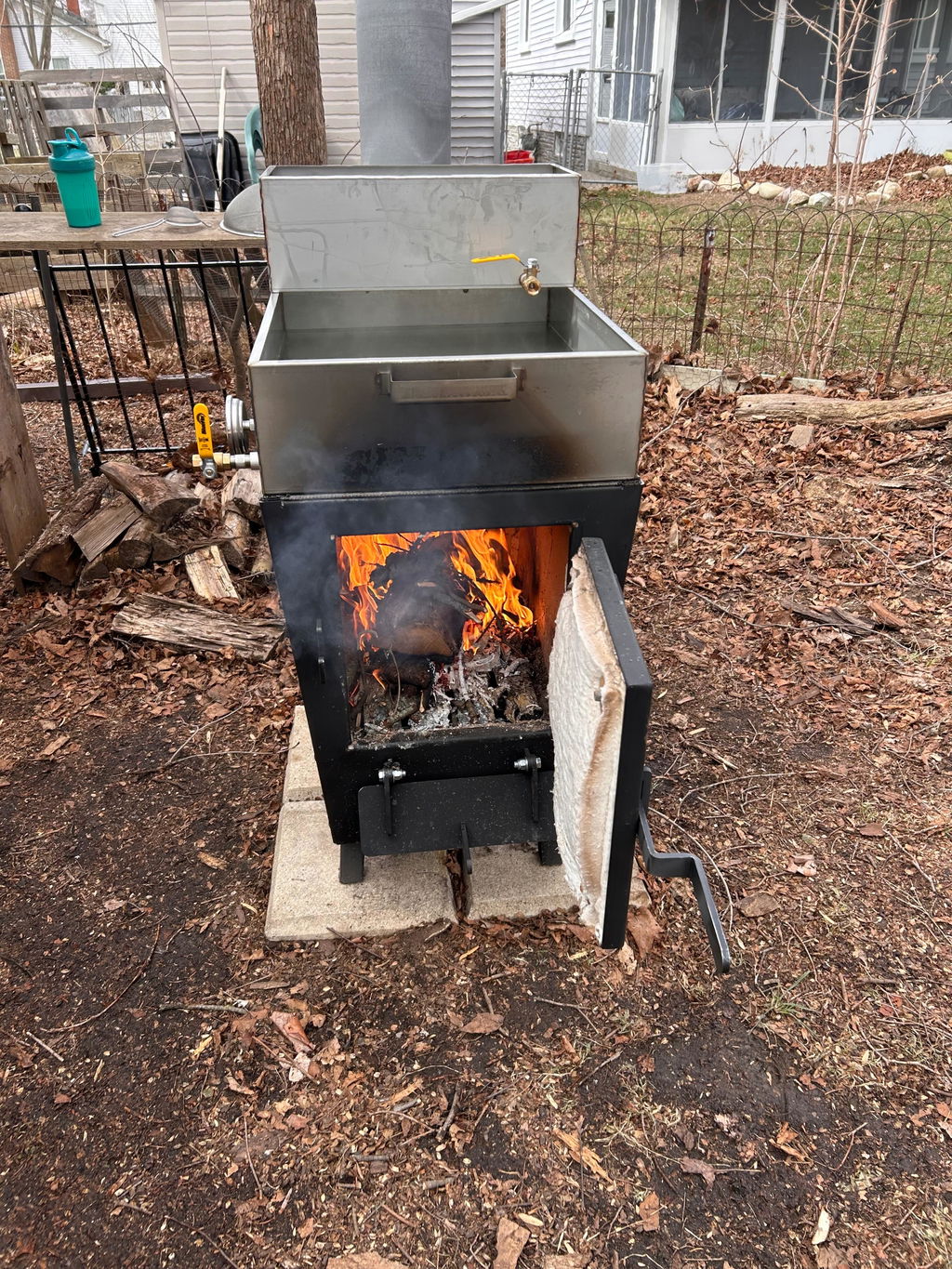

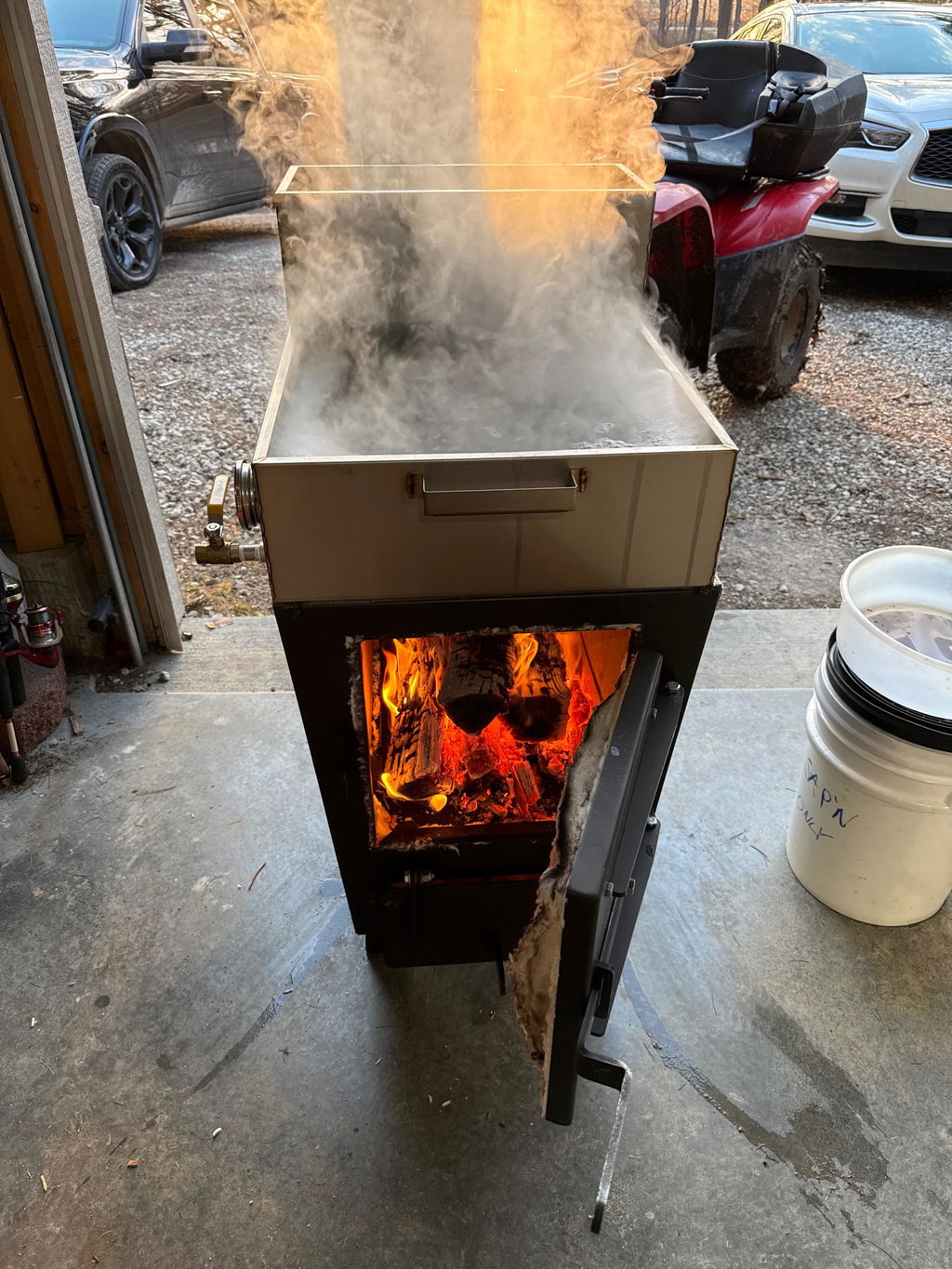

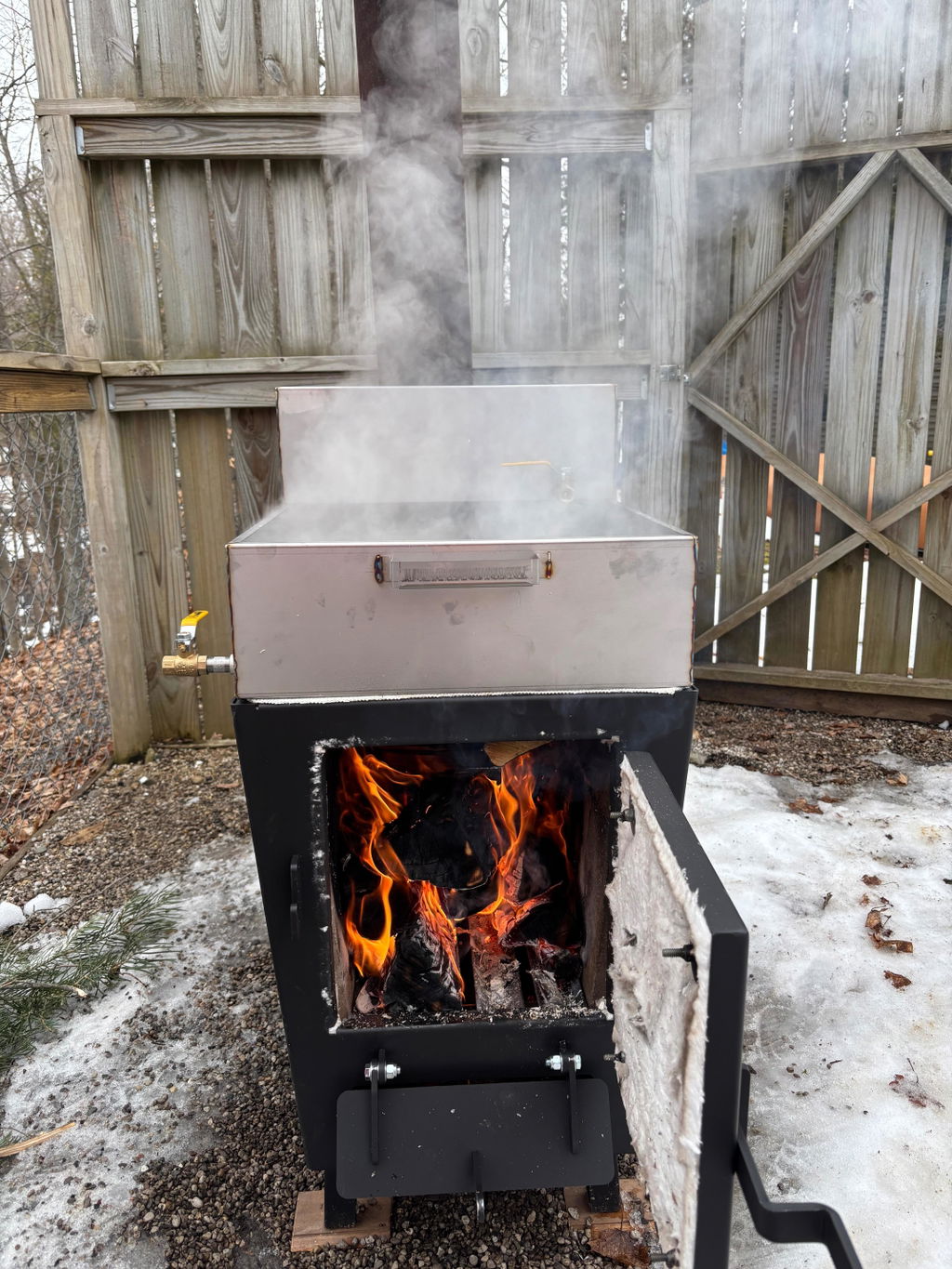

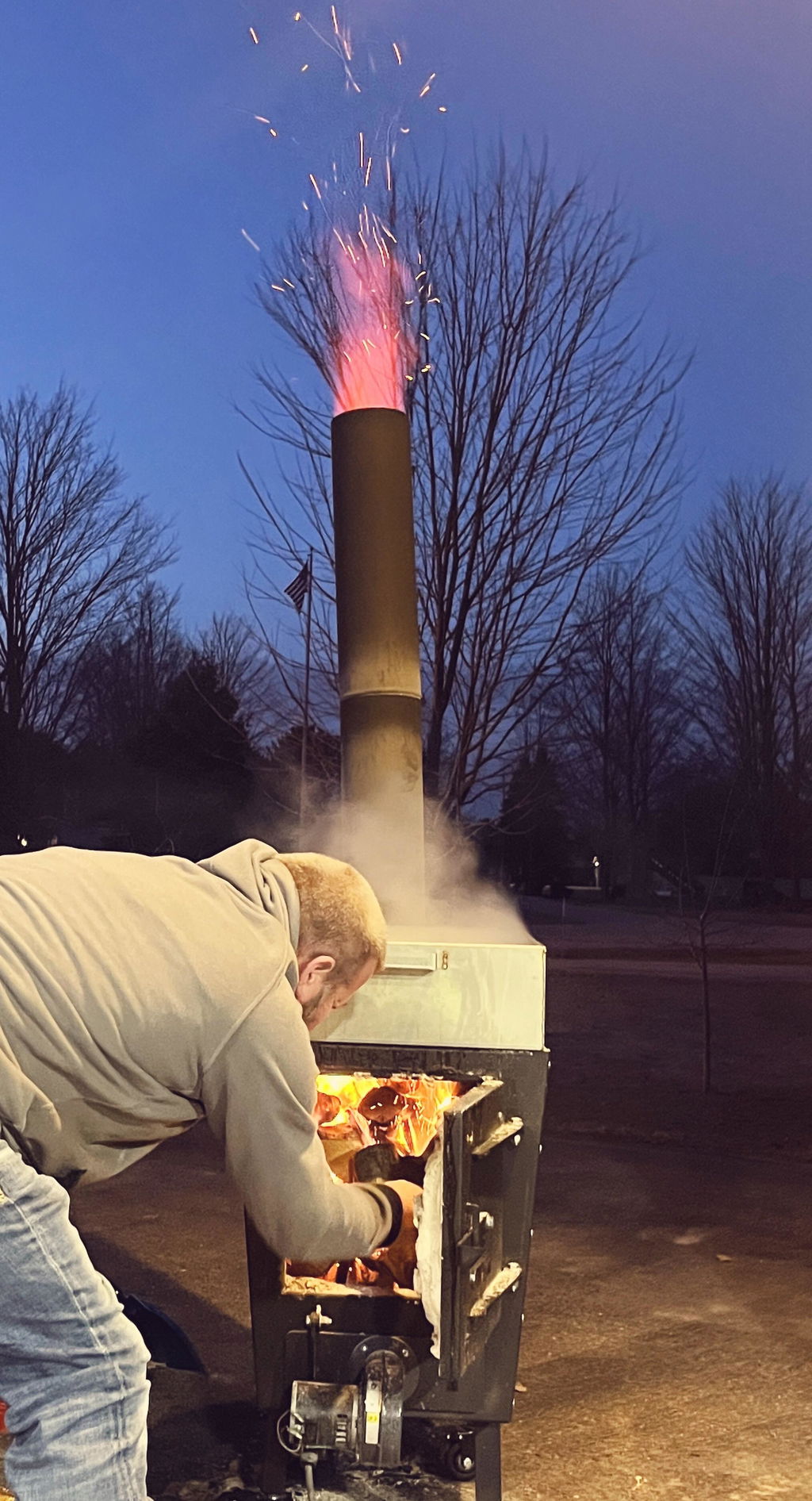

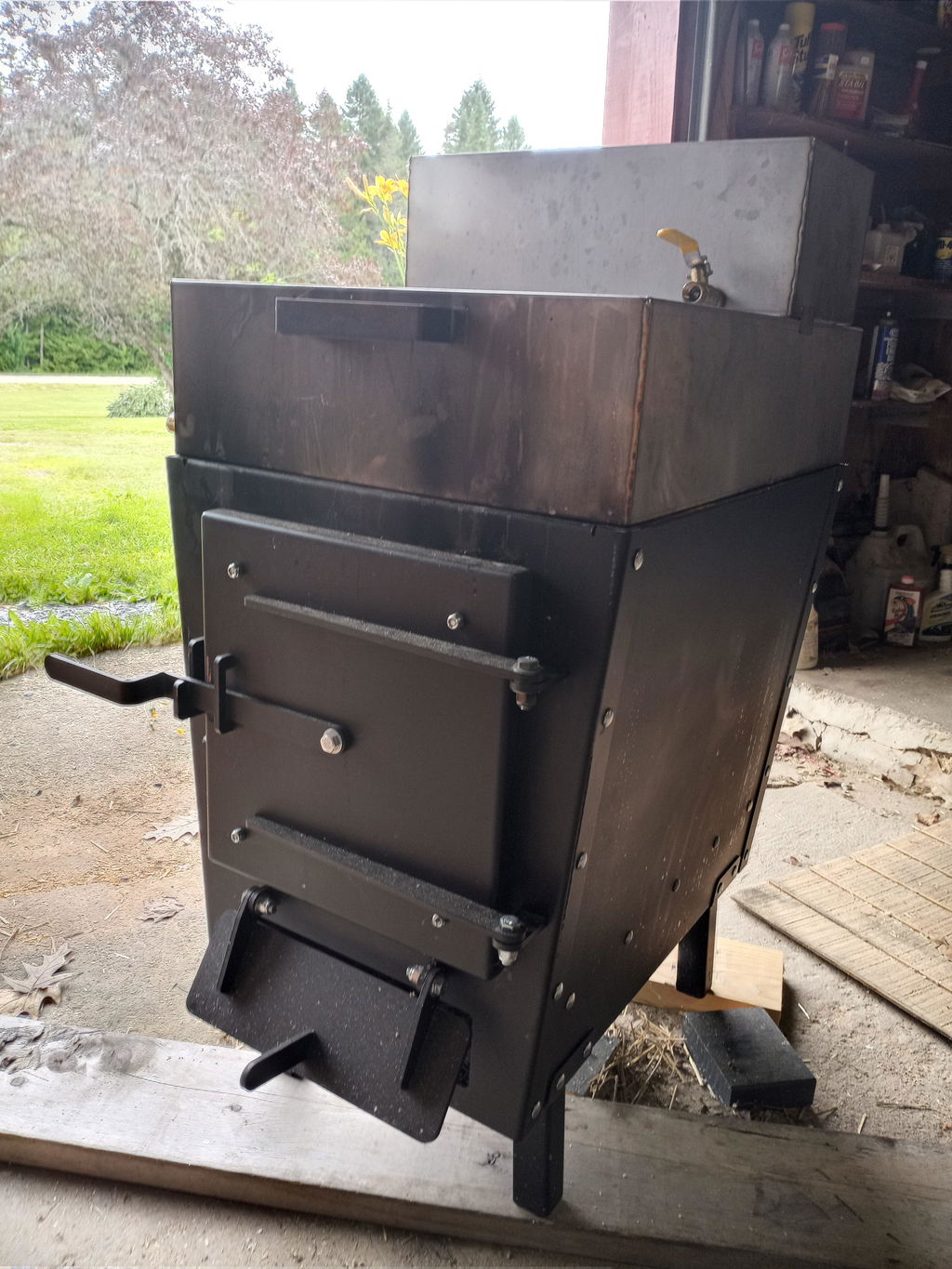

Airtight firebox holds heat and saves wood

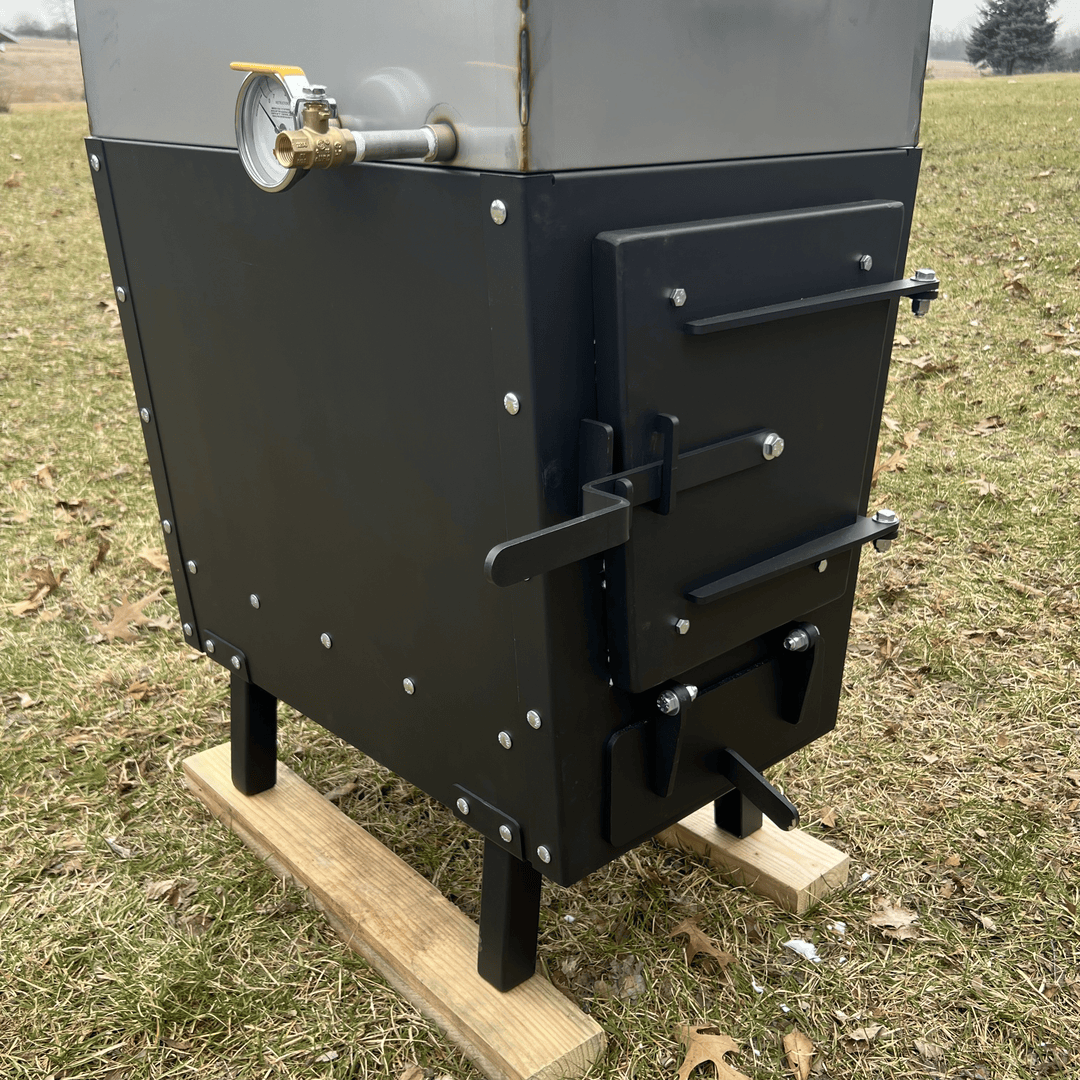

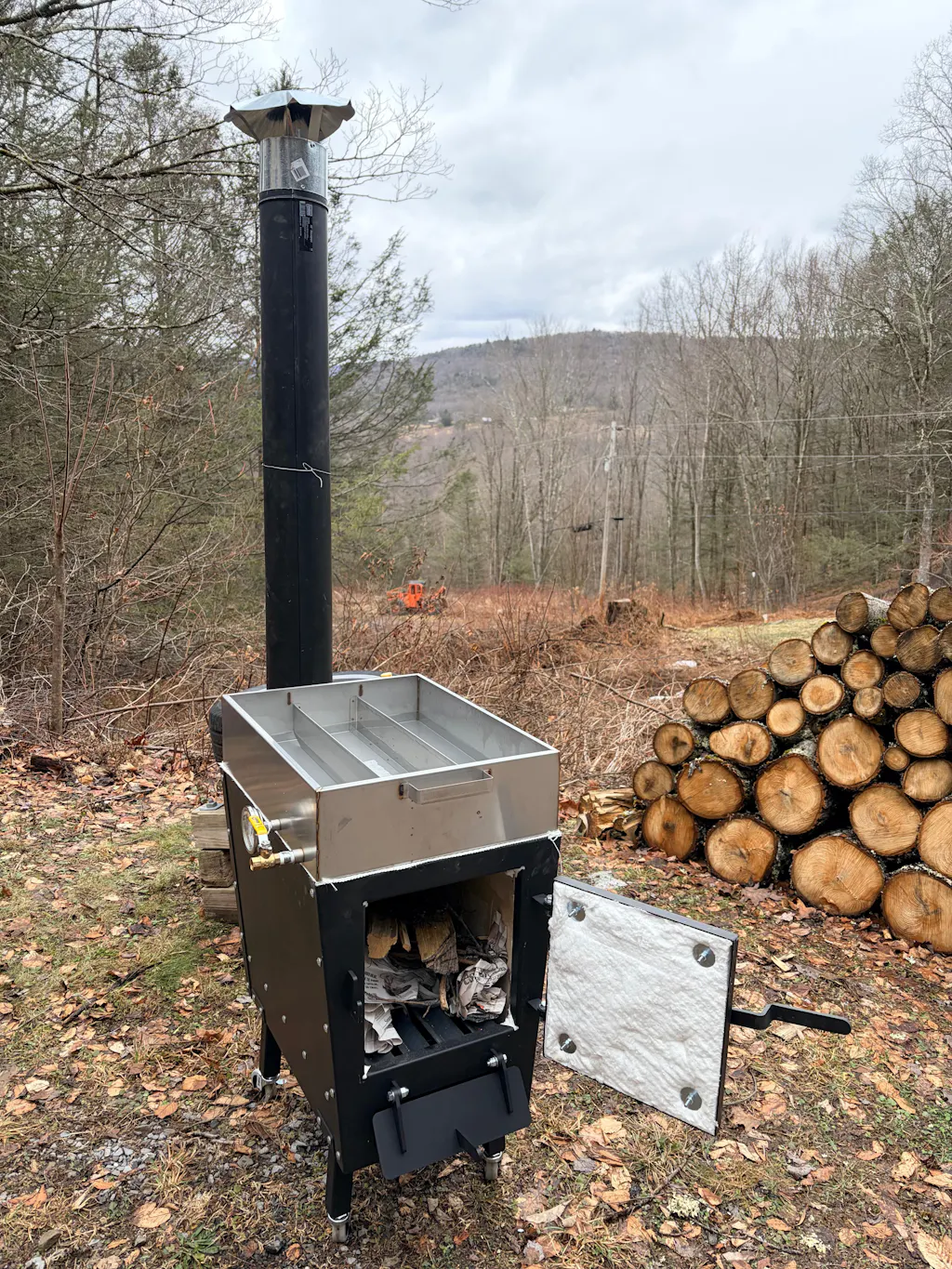

Ash cleanout & draft door make fire management easy
Laser cut & CNC formed in Grand Haven, MI from American steel
TIG welded pans, crafted from 20 gauge 304 stainless steel.

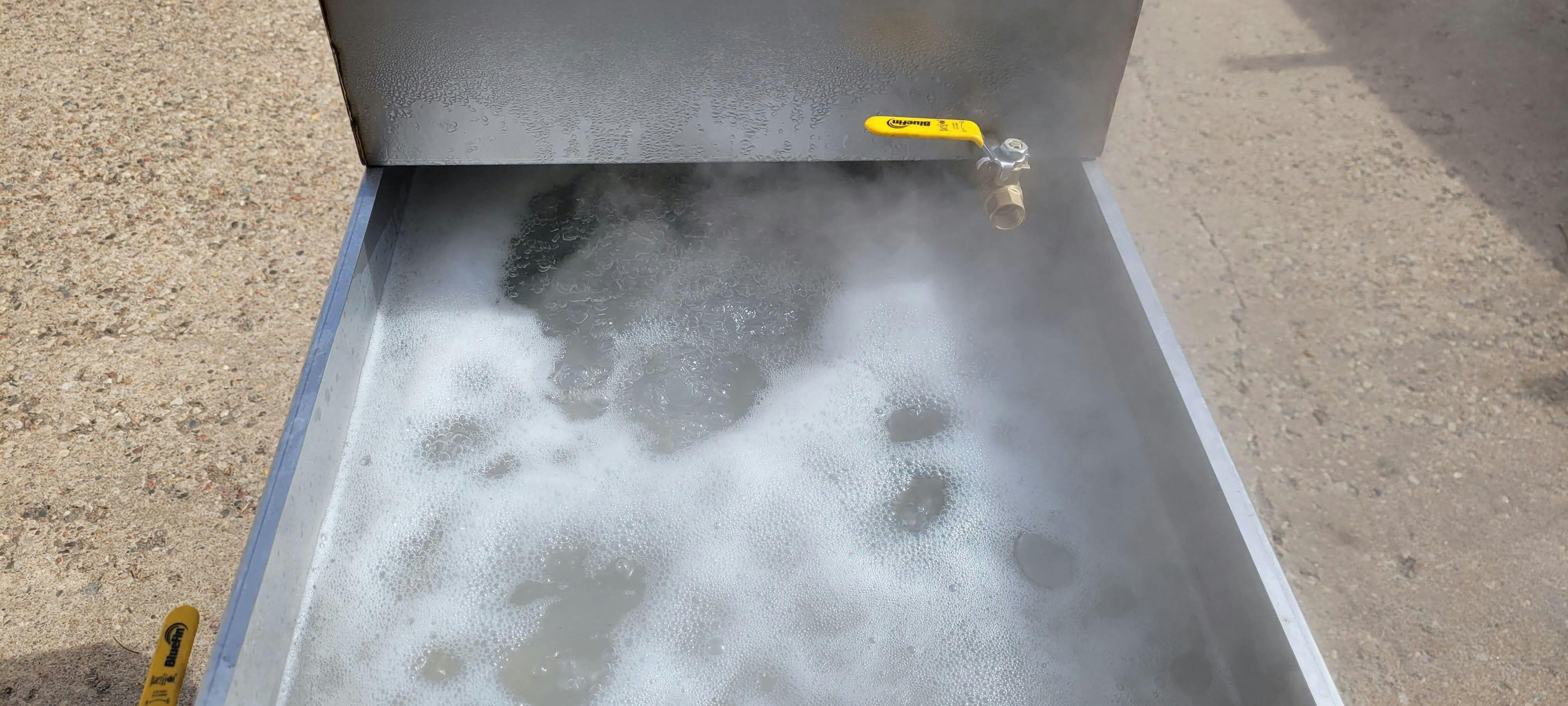

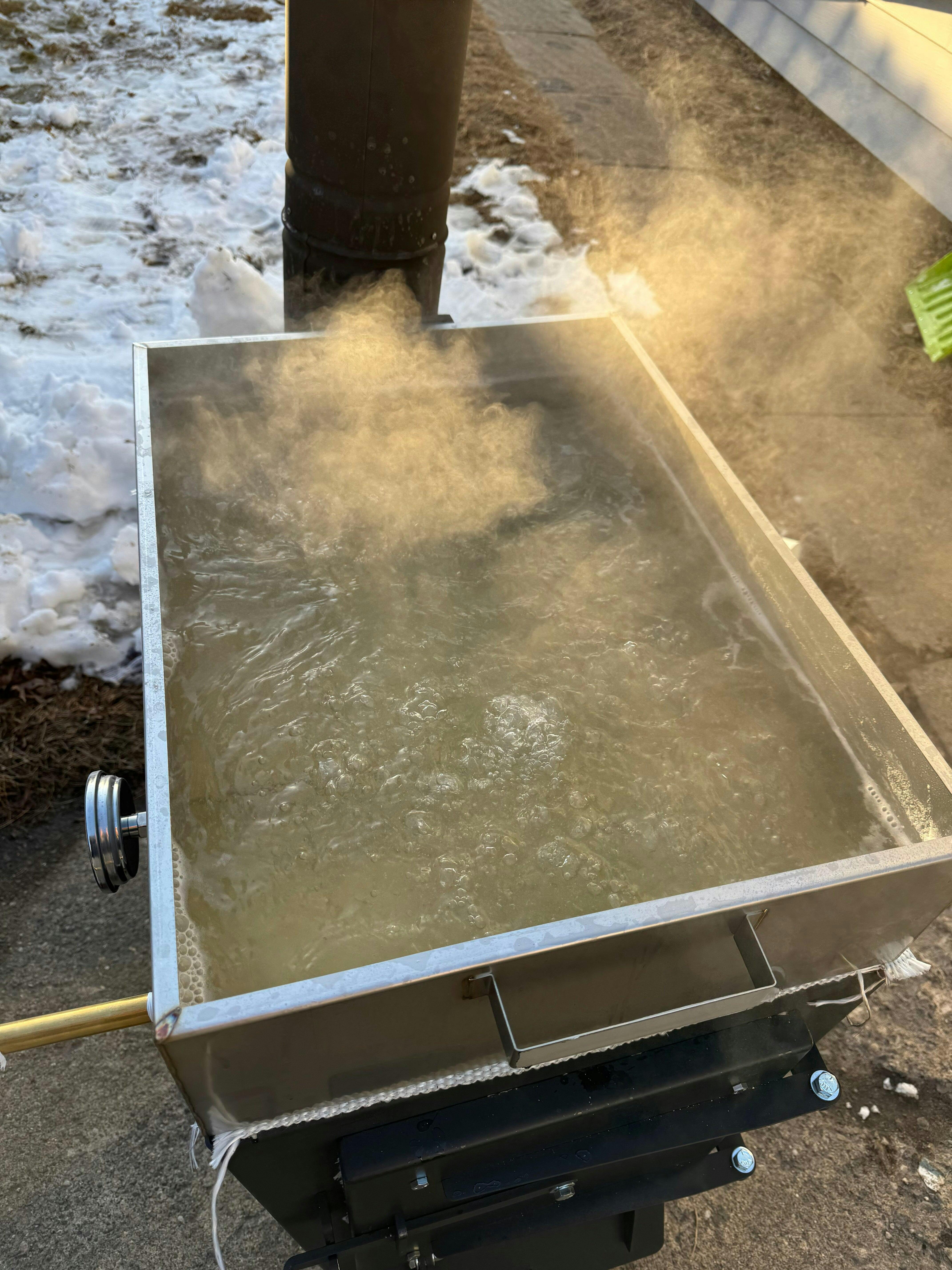

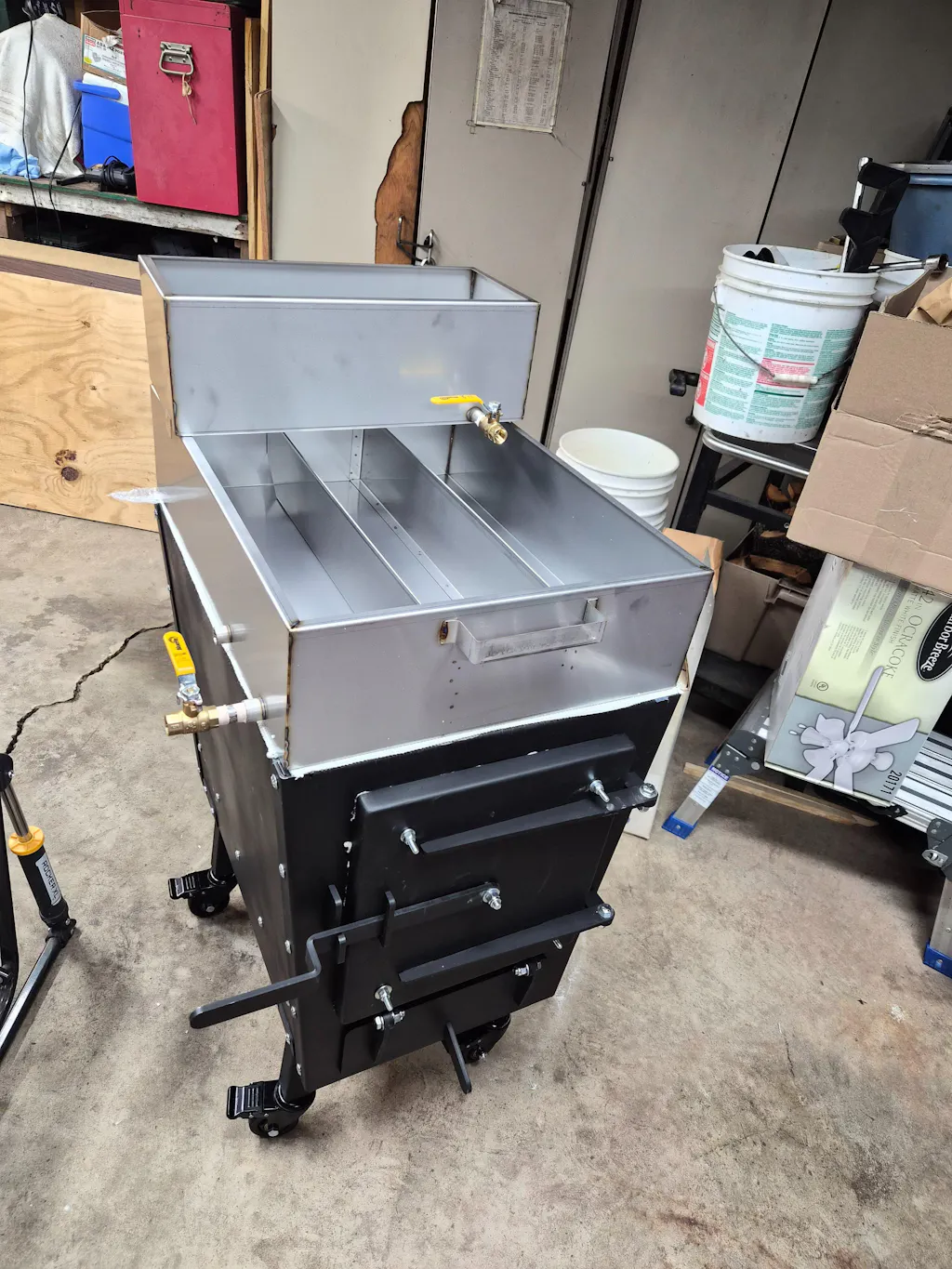

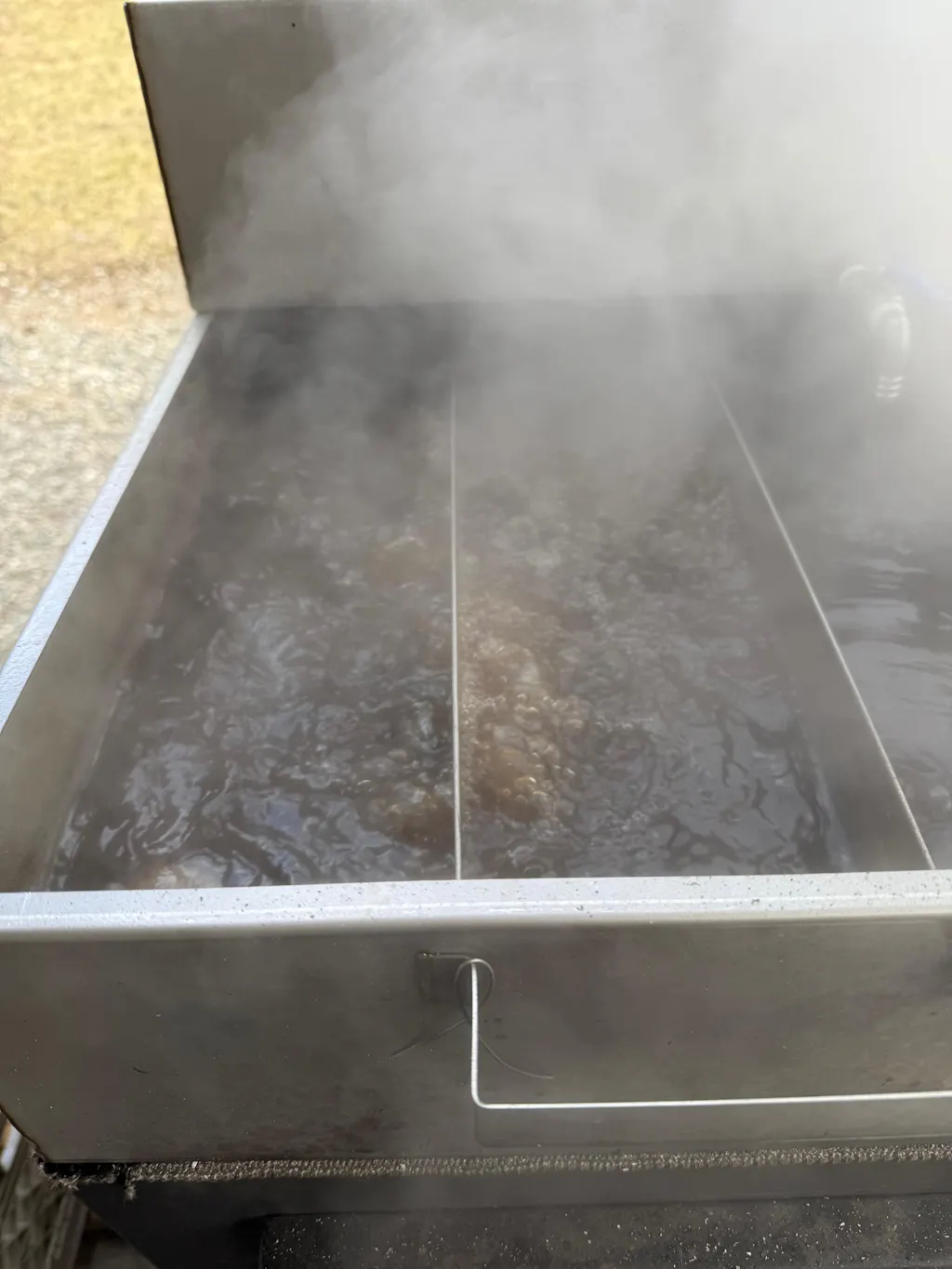

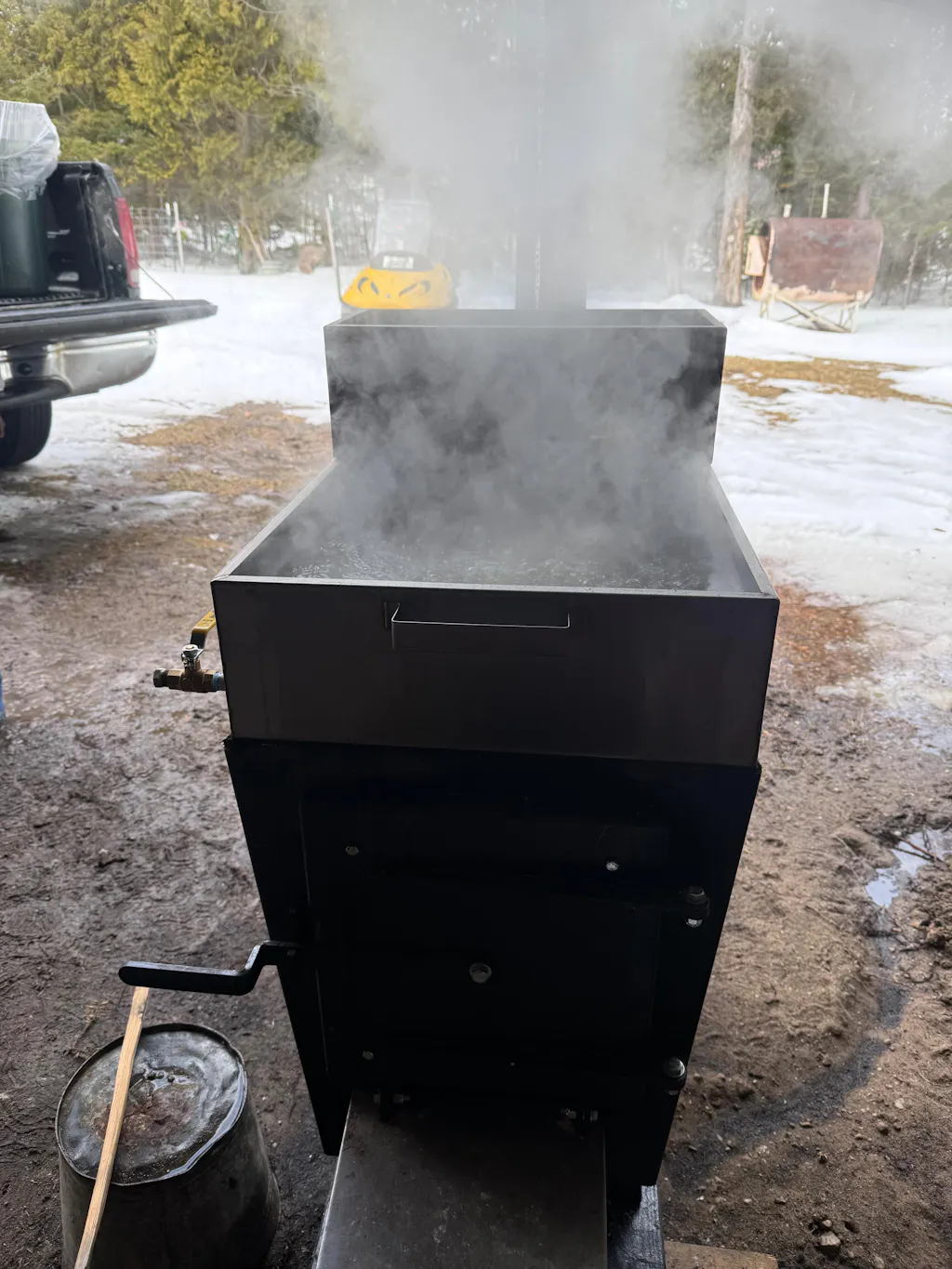

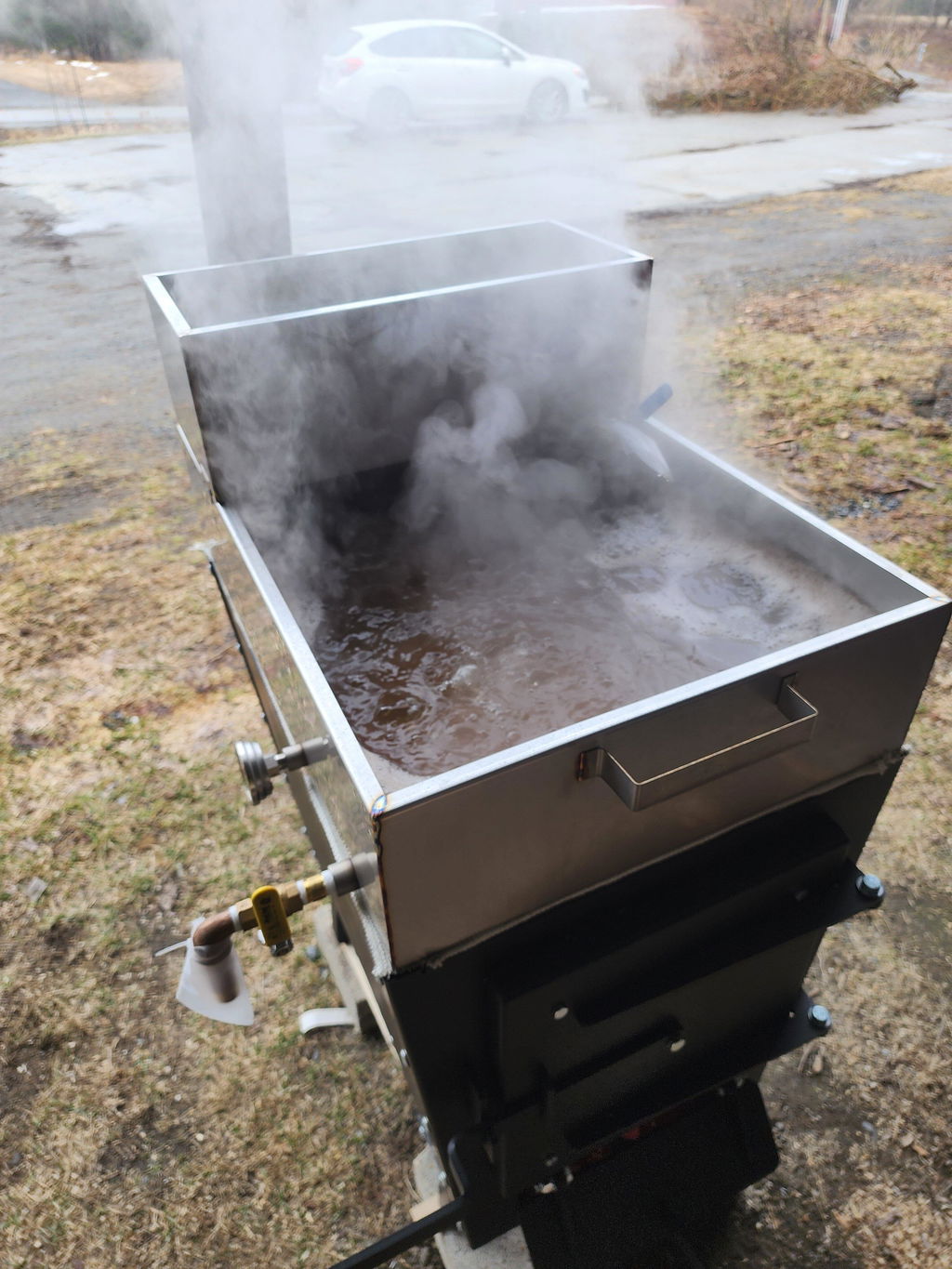

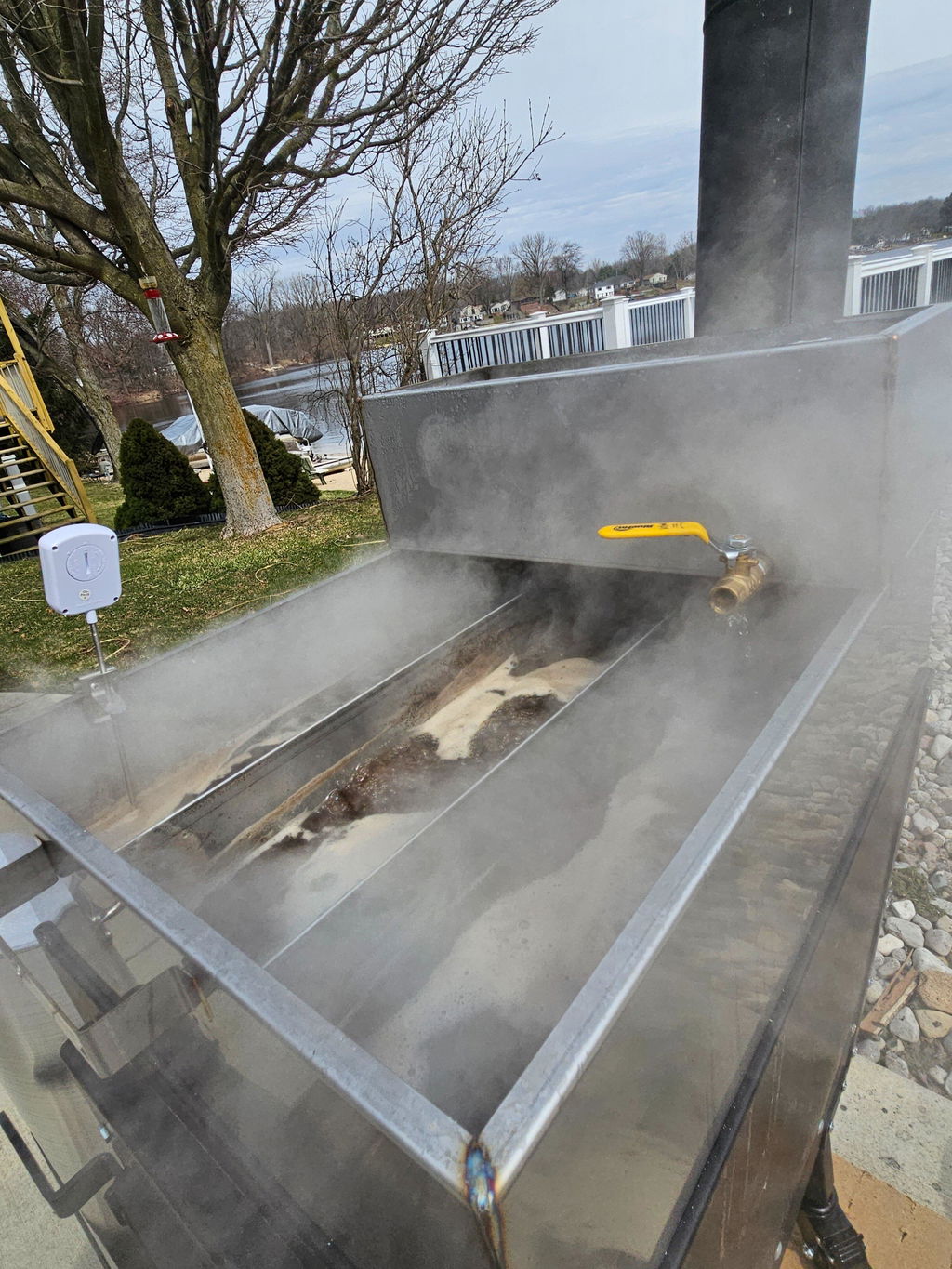

Boiling Pan

Size: 24" x 18" x 6"
Capacity: 5.5 gallons at 3" depth
Integrated side handles make lifting and pouring easier

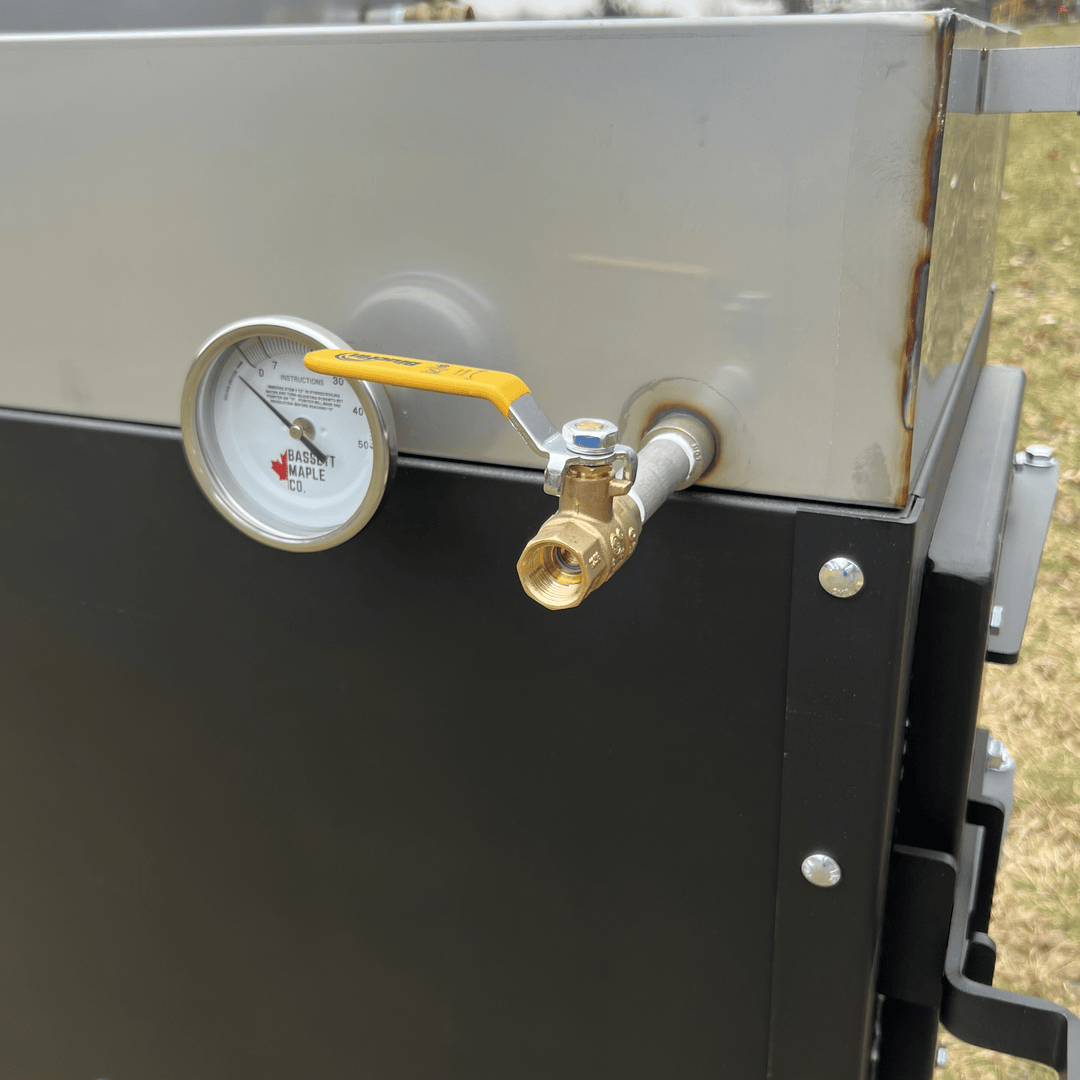

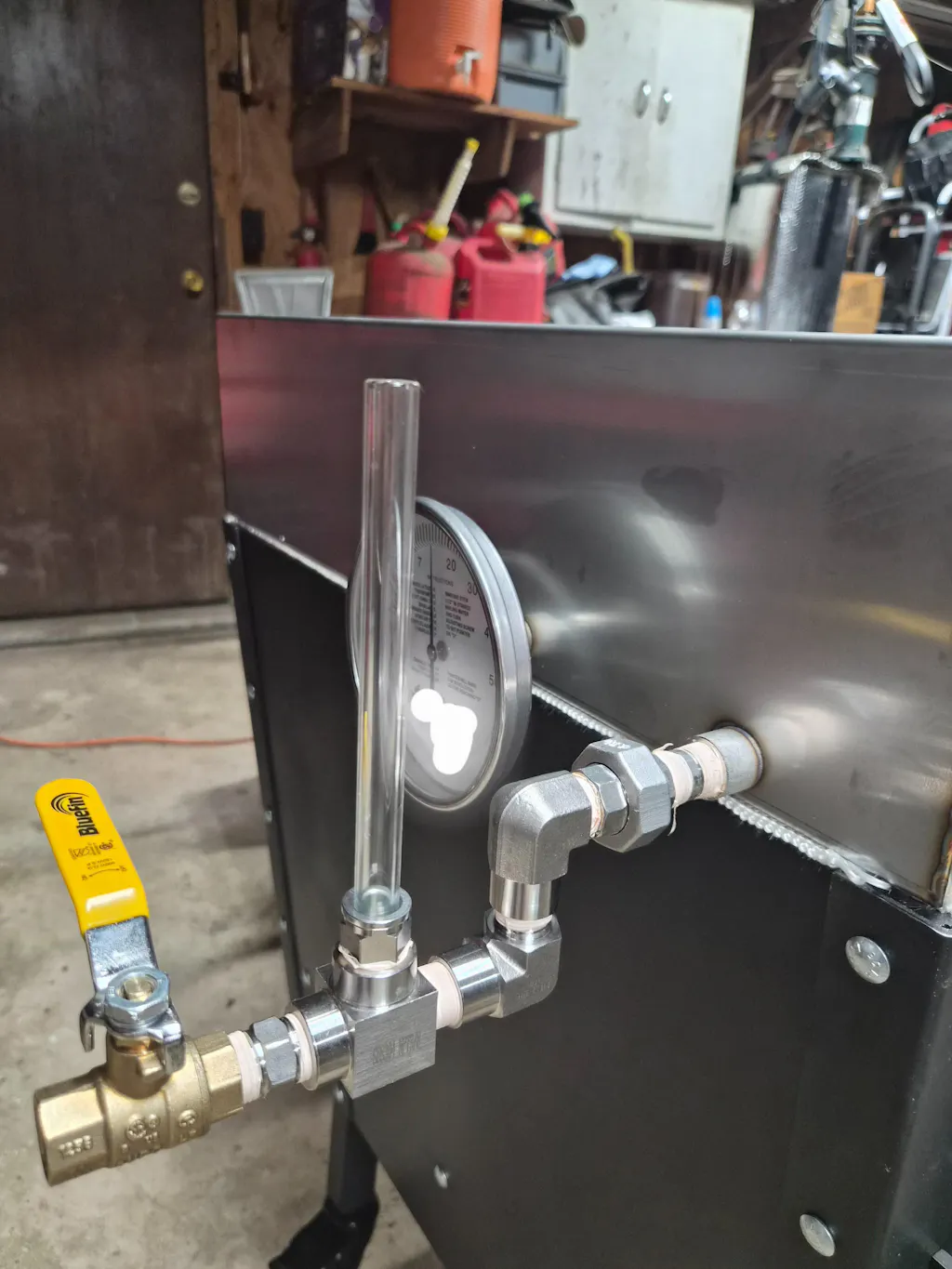

Includes a 3/8" valve for draining syrup

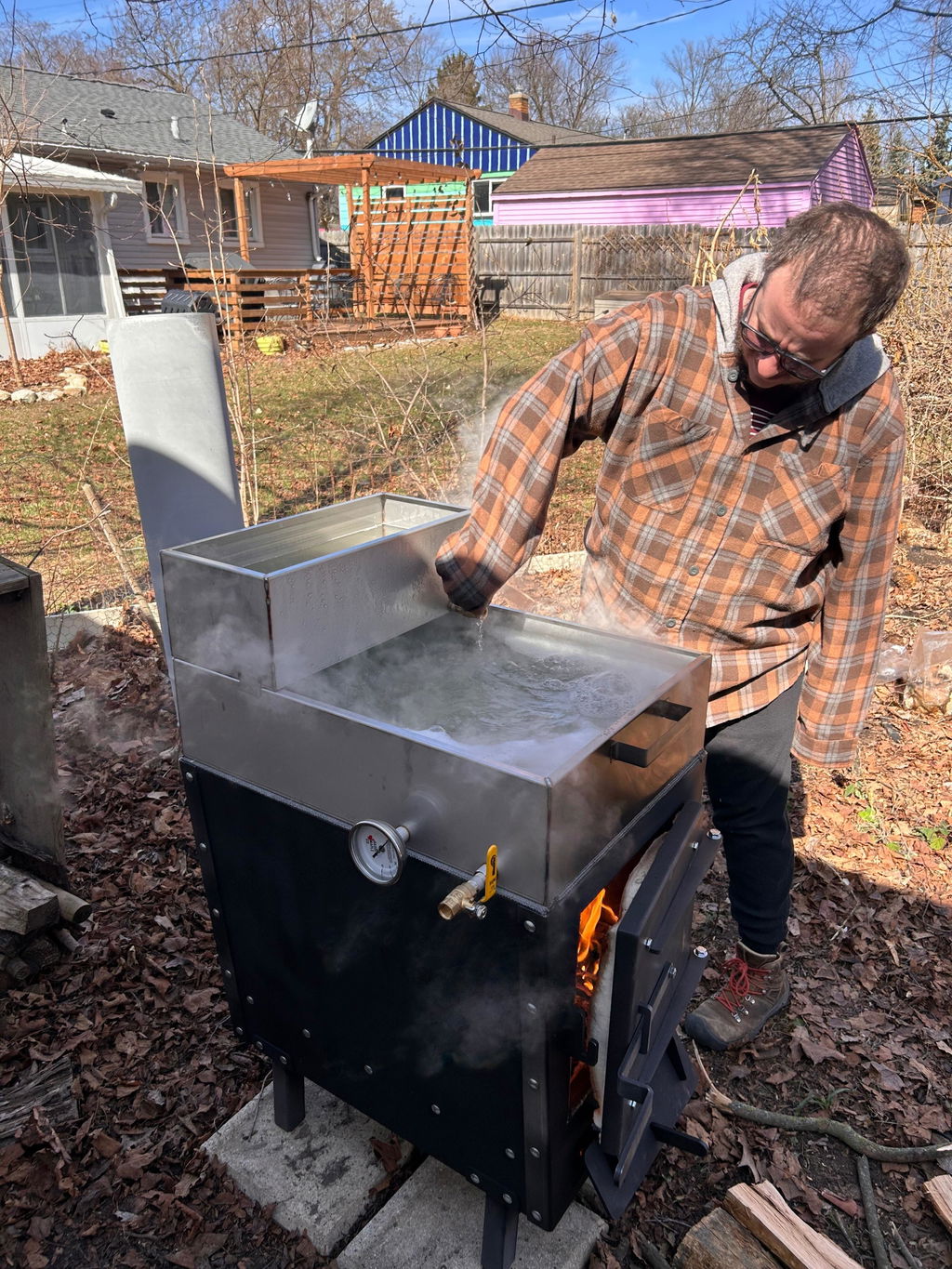

1/4" plug included for optional thermometer

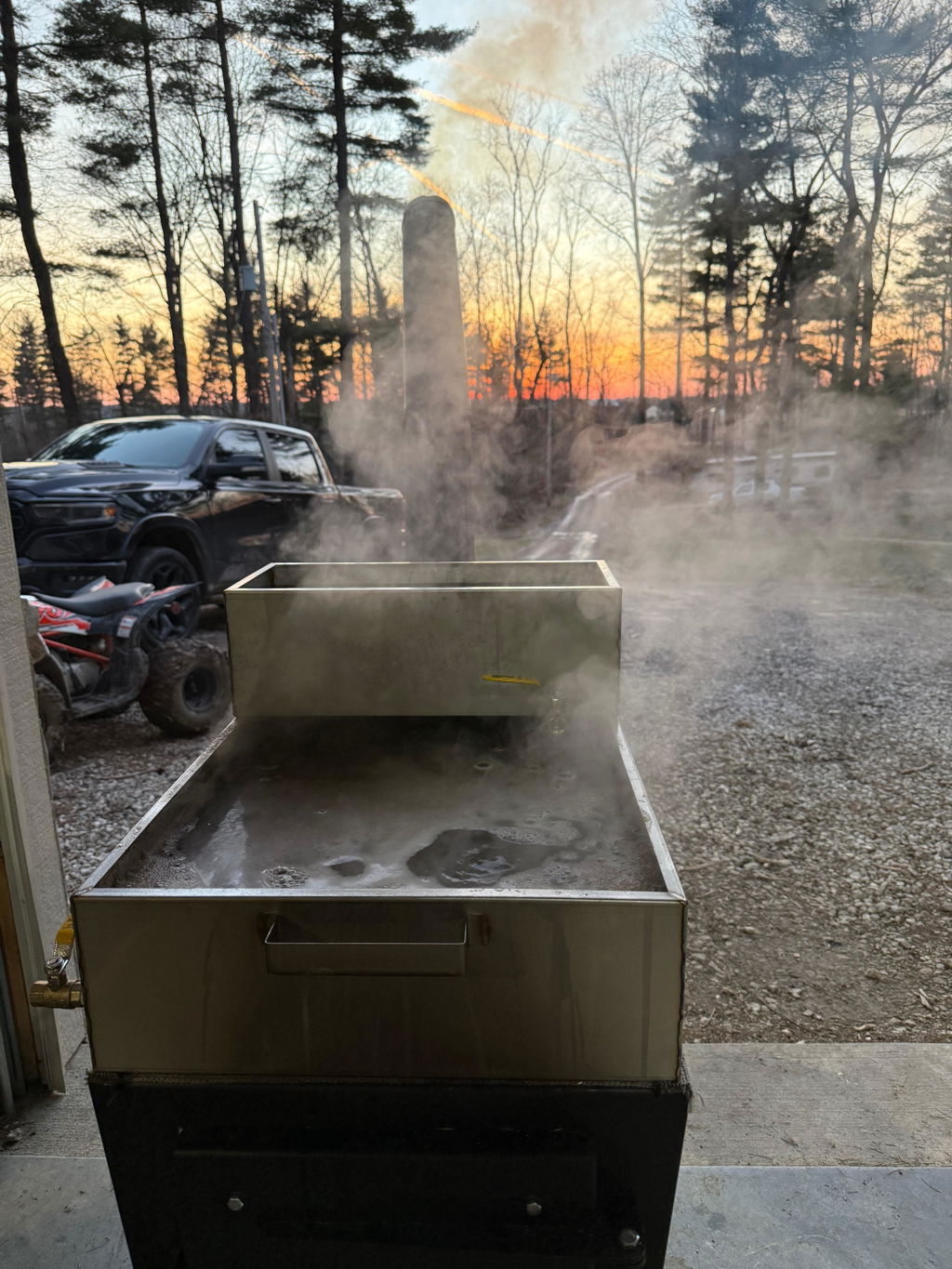

Sap Feed Pan

Size: 8" x 18" x 6"
Capacity: 4 gallons when full

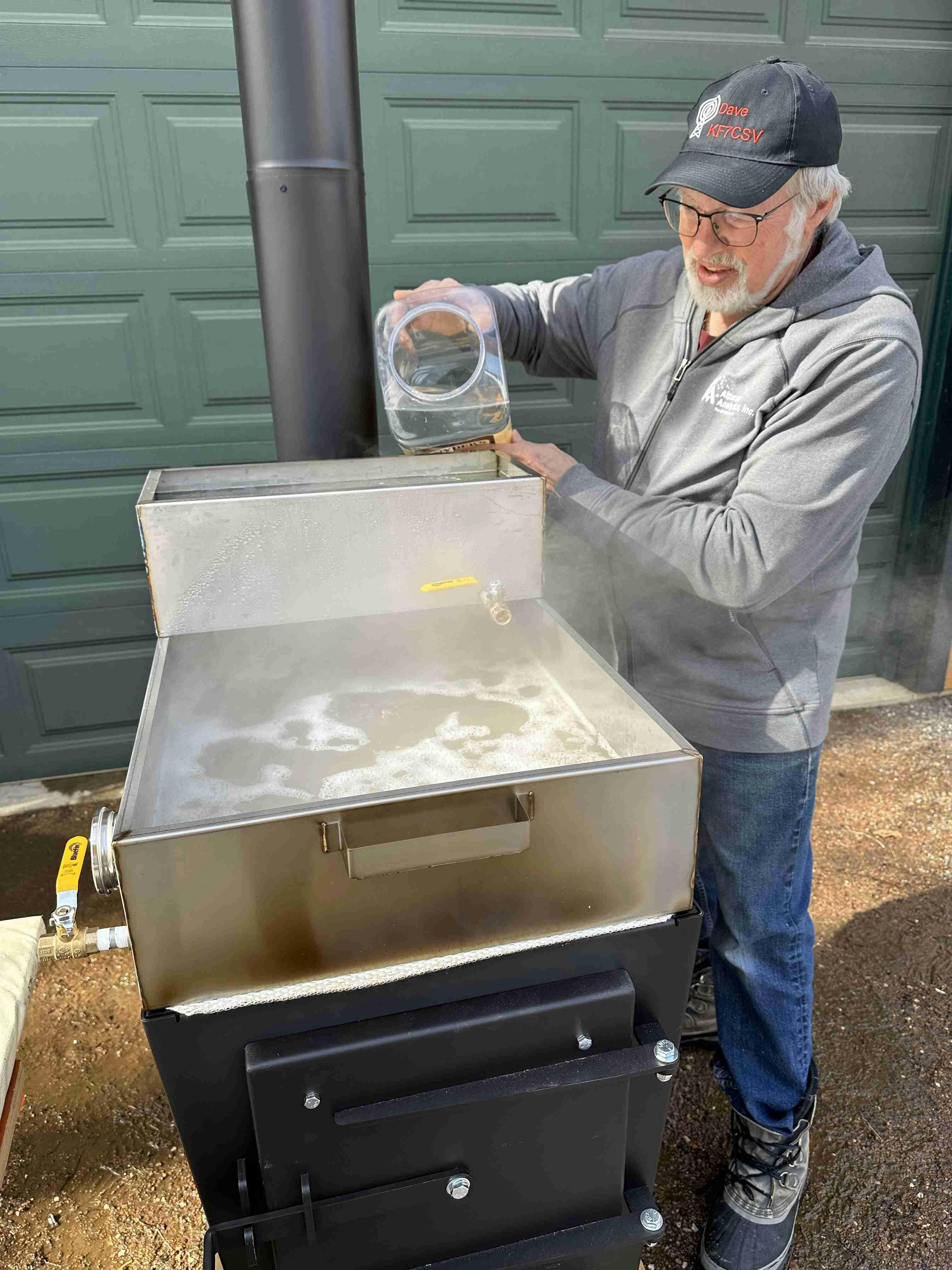

Includes a trickle valve to slowly add warm sap so your boil doesn’t slow down

What's Included

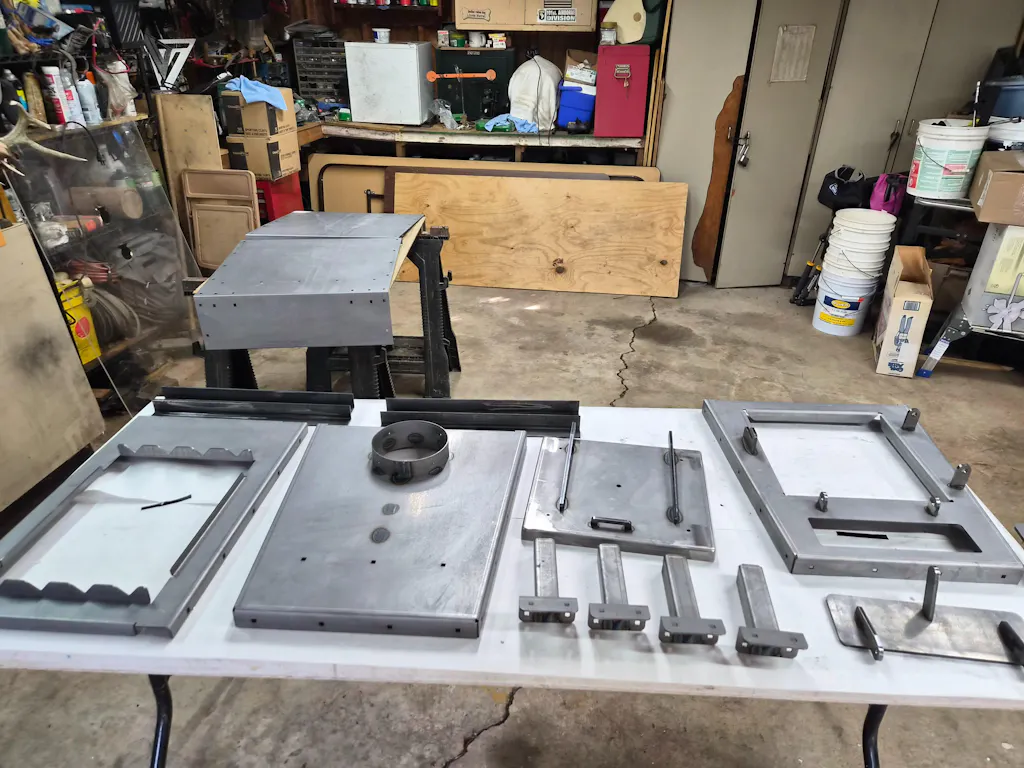

Complete steel firebox kit – all precision laser-cut and CNC-formed components
TIG welded stainless steel pans – boiling pan and sap feed pan

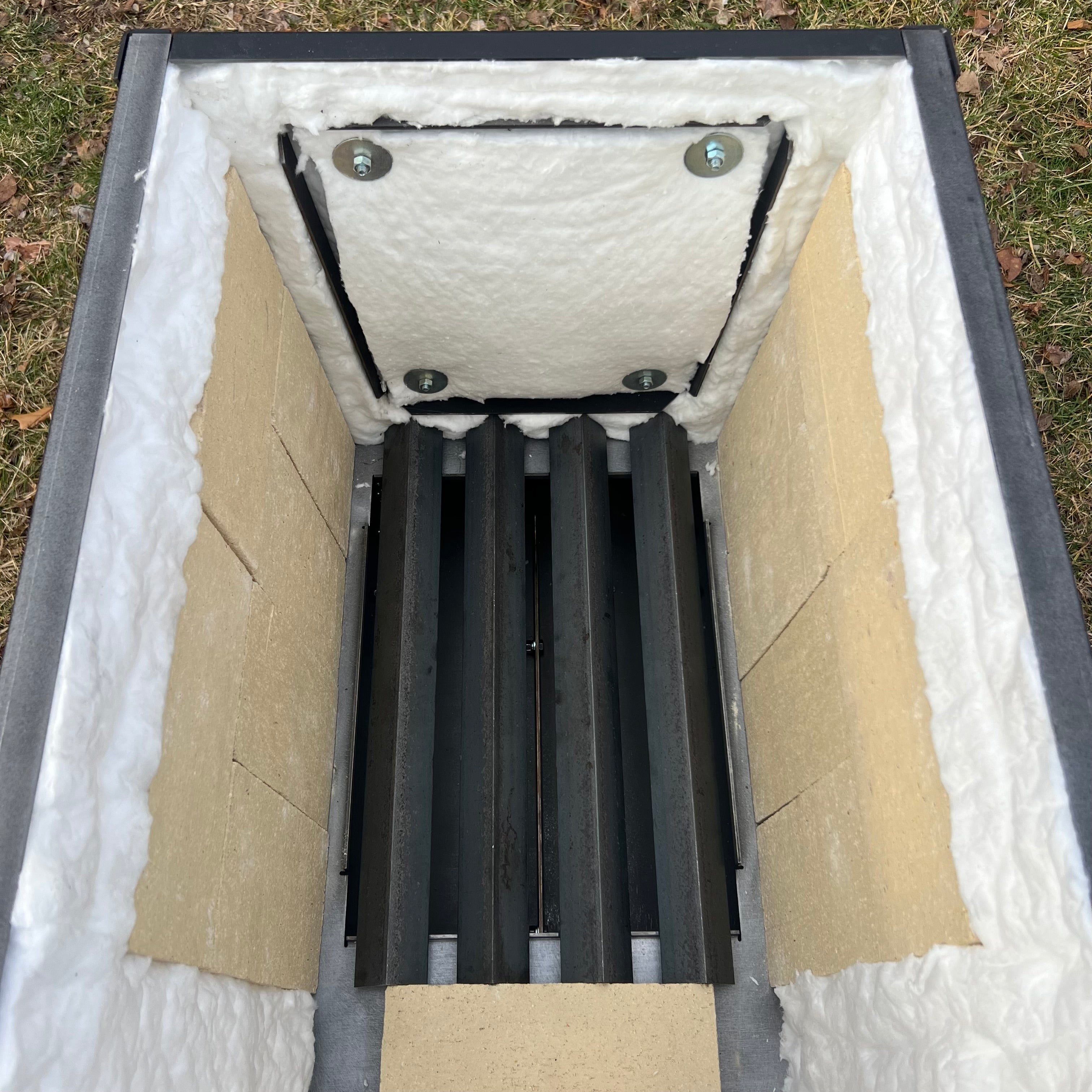

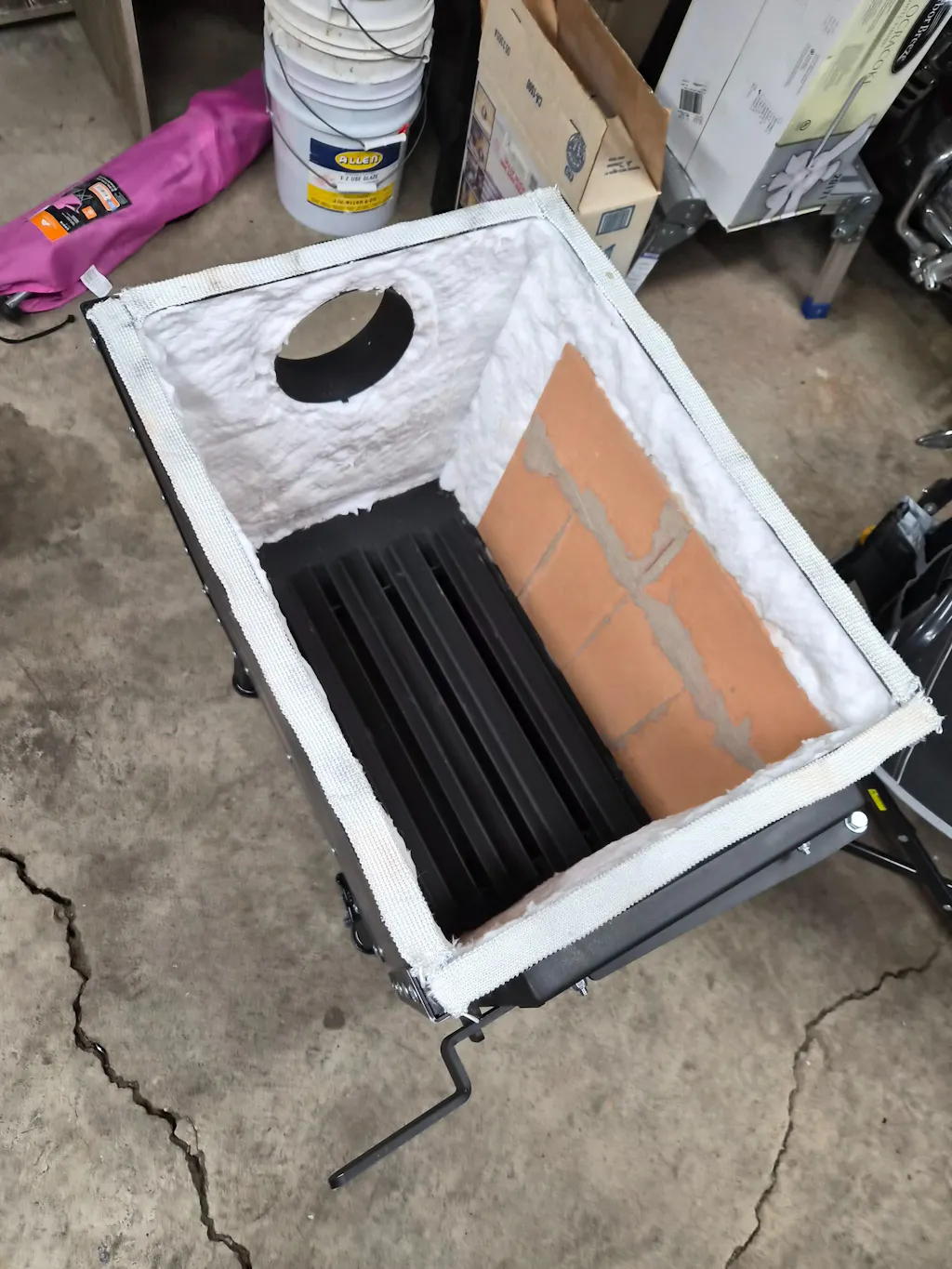

Ceramic insulation for firebox lining
Fiberglass pan gasket
All valves, fittings, and required hardware
2 cans of High-temperature paint
Assembly instructions

You’ll need to supply:
13 fire bricks (9" x 4.5" x 1.25")

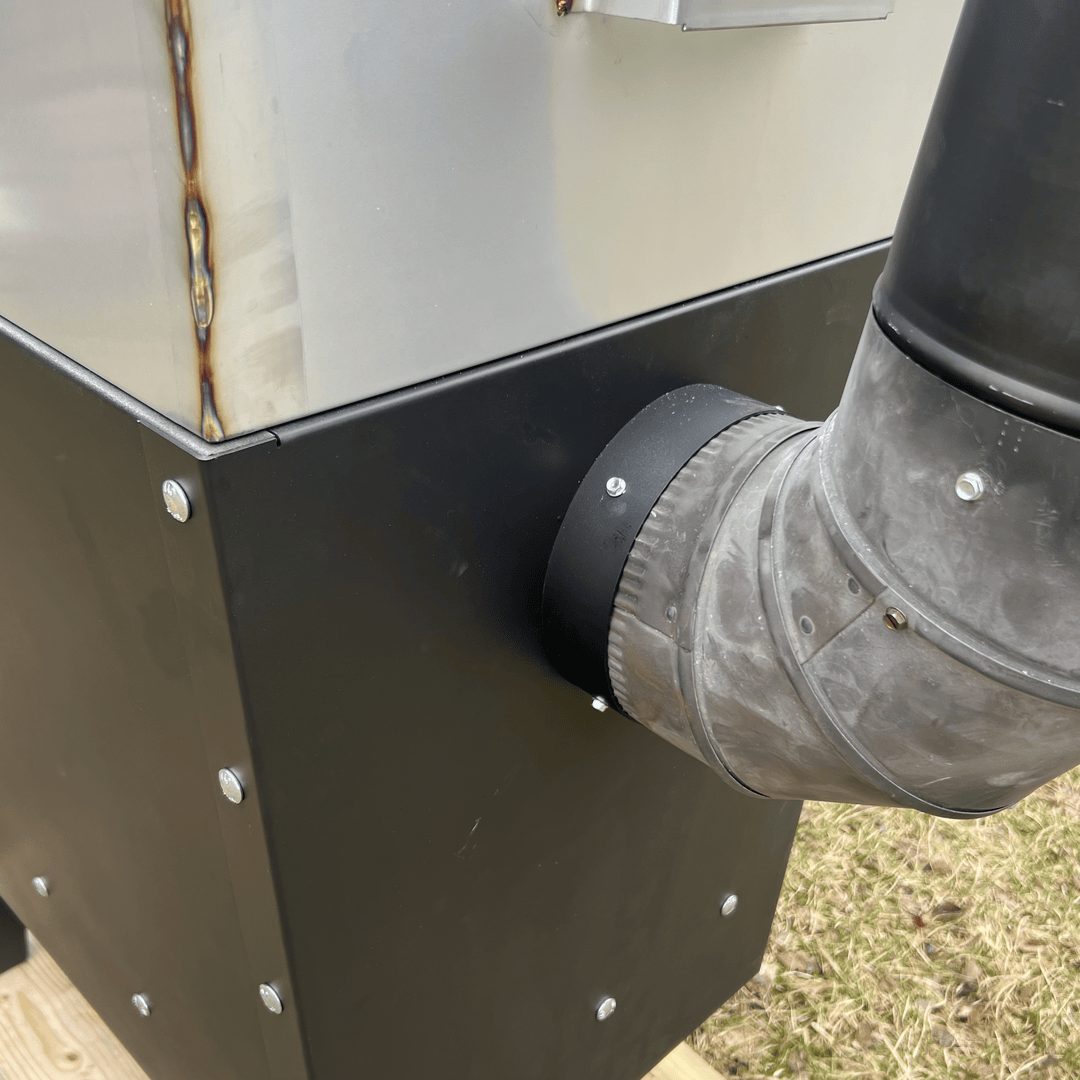

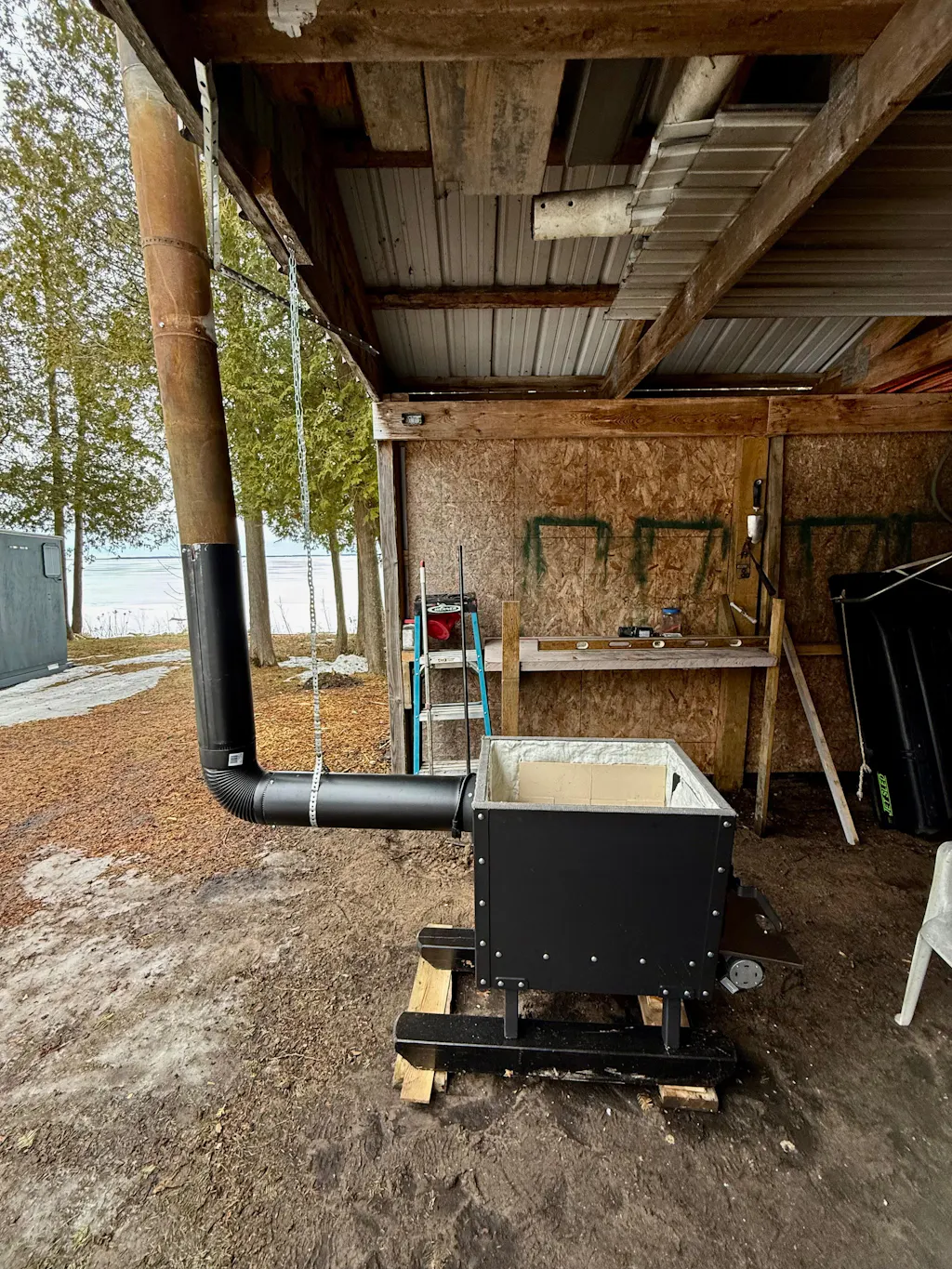

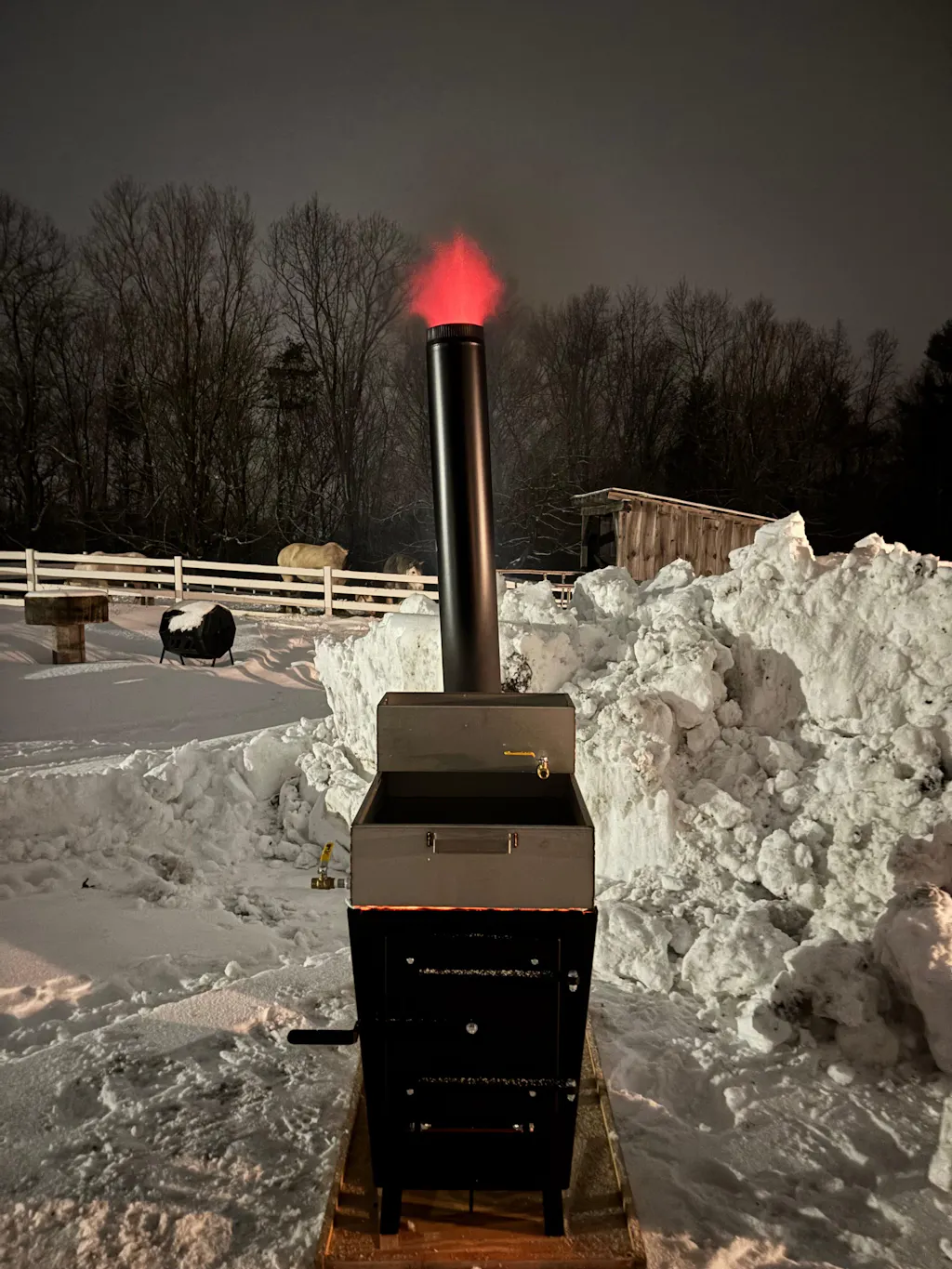

A short section of chimney pipe
(Both available at most home and garden stores)

Shipping Info

The 24x18” Evaporator ships for free via UPS Ground!

Arch Box: 92lbs 28x24x9”

Pan Box: 20lbs 28x20x8”

Not Sure Which Evaporator is Right for You?

At Bassett Maple Co., we build evaporators to match every stage of your sugaring journey. Whether you’re just getting started or looking to expand your backyard operation, we have a model to fit your needs.

For Beginners and Small Operations
If you’re new to maple syrup making or running fewer taps, the 24×18" Evaporator is your perfect starting point. Compact, fuel-efficient, and easy to run, it delivers a steady 4–6 gallons per hour evaporation rate—ideal for 5–40 taps. Its small footprint makes it simple to set up in any sugar shack or backyard.

For Growing Hobbyists
As you expand beyond the entry level, the 2×3' Evaporator gives you more capacity without taking up much more space. With an 9–11 gallons per hour evaporation rate, it’s a great balance for 10–60 taps, helping you scale production while keeping boil days manageable.

For Larger Operations
When it’s time to handle serious volumes, the 2×4' Evaporator is the clear choice. Delivering 11–13 gallons per hour, it’s perfect for 20–80 taps and for those ready to push more syrup through in less time.

Don’t wait until the season starts — secure your Bassett Maple Co. evaporator today! With fast 2–3 day turnaround beginning October 15th, you’ll be ready to boil as soon as the sap starts running.

24 x 18" Flat Pan Maple Syrup Evaporator

$900.00

$1,050.00

Packaging And Shipping 24 x 18" Bassett Maple Co Evaporator

UNBEATABLE VALUE

We’re proud to offer some of the best prices in the maple syrup world—without ever sacrificing quality, durability, or performance.

BEGINNER FRIENDLY

Designed with first-time syrup makers in mind—easy to set up, simple to use, and no special tools or experience required.

MADE IN MICHIGAN

Fabricated in Grand Haven, Michigan with American craftsmanship and premium materials. Proudly built to help you make real maple syrup at home.

Incredible product. Strong, efficient, and smart.

24 X 18 Evaporator

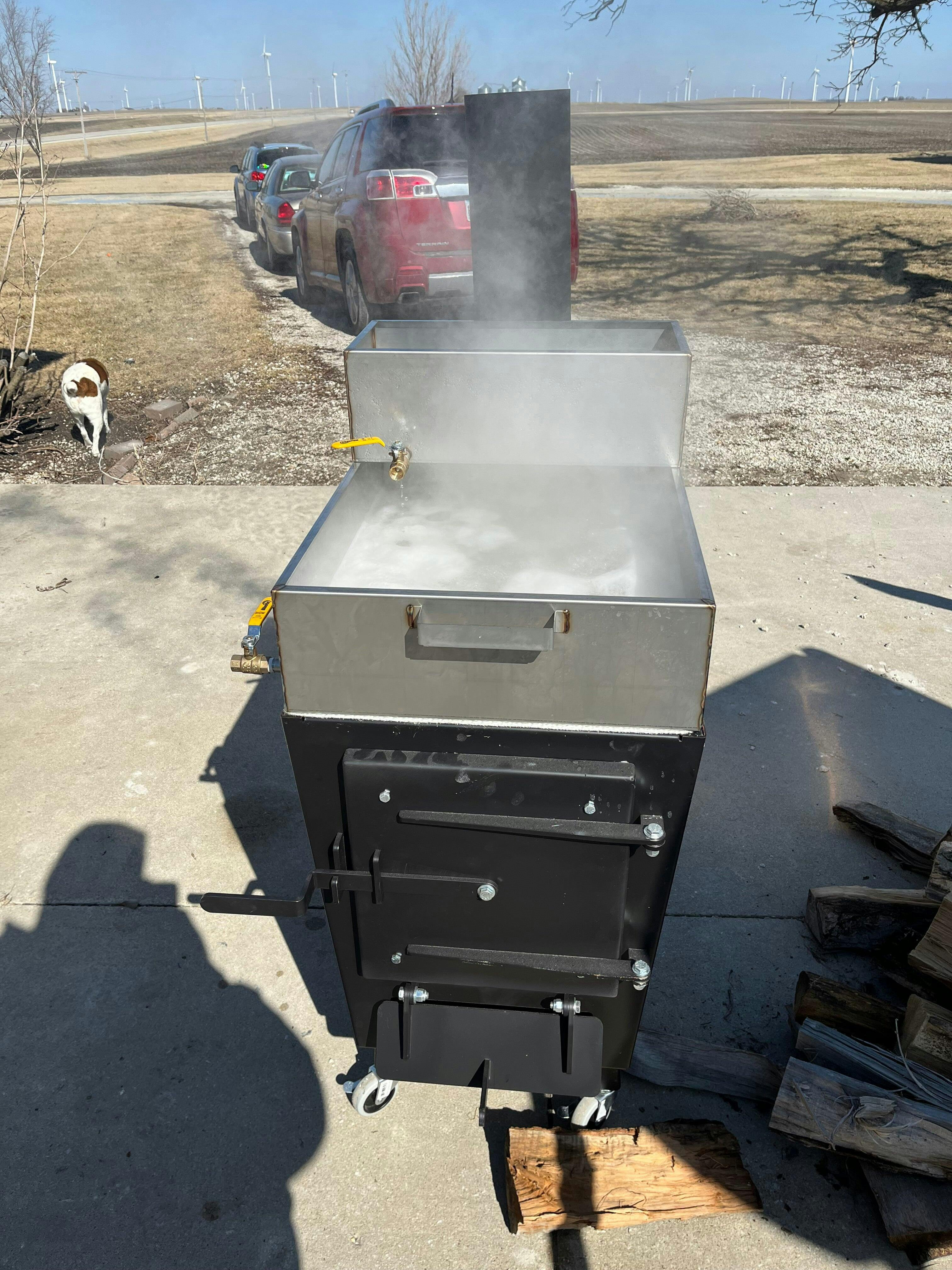

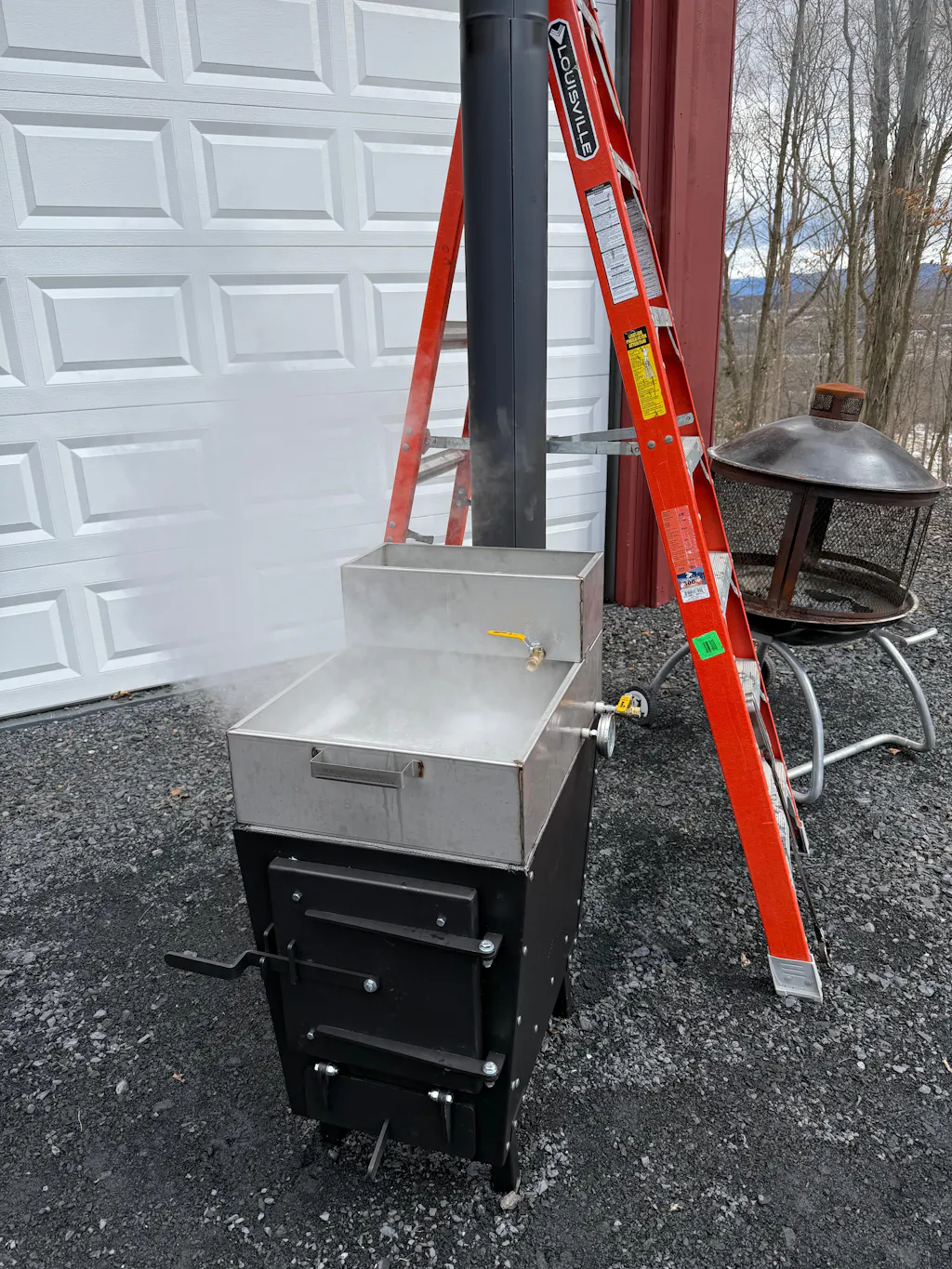

Outstanding product! Rarely do you find an item that lives up to its advertising. From the design to the quality of the materials, the assembly instructions and the customer service are all top notch. The evaporation rate and the wood burning efficiency exceeded my expectations. I added castors to the legs which was a plus. Thank you Charlie! Wisconsin Rapids WI

Worked Great

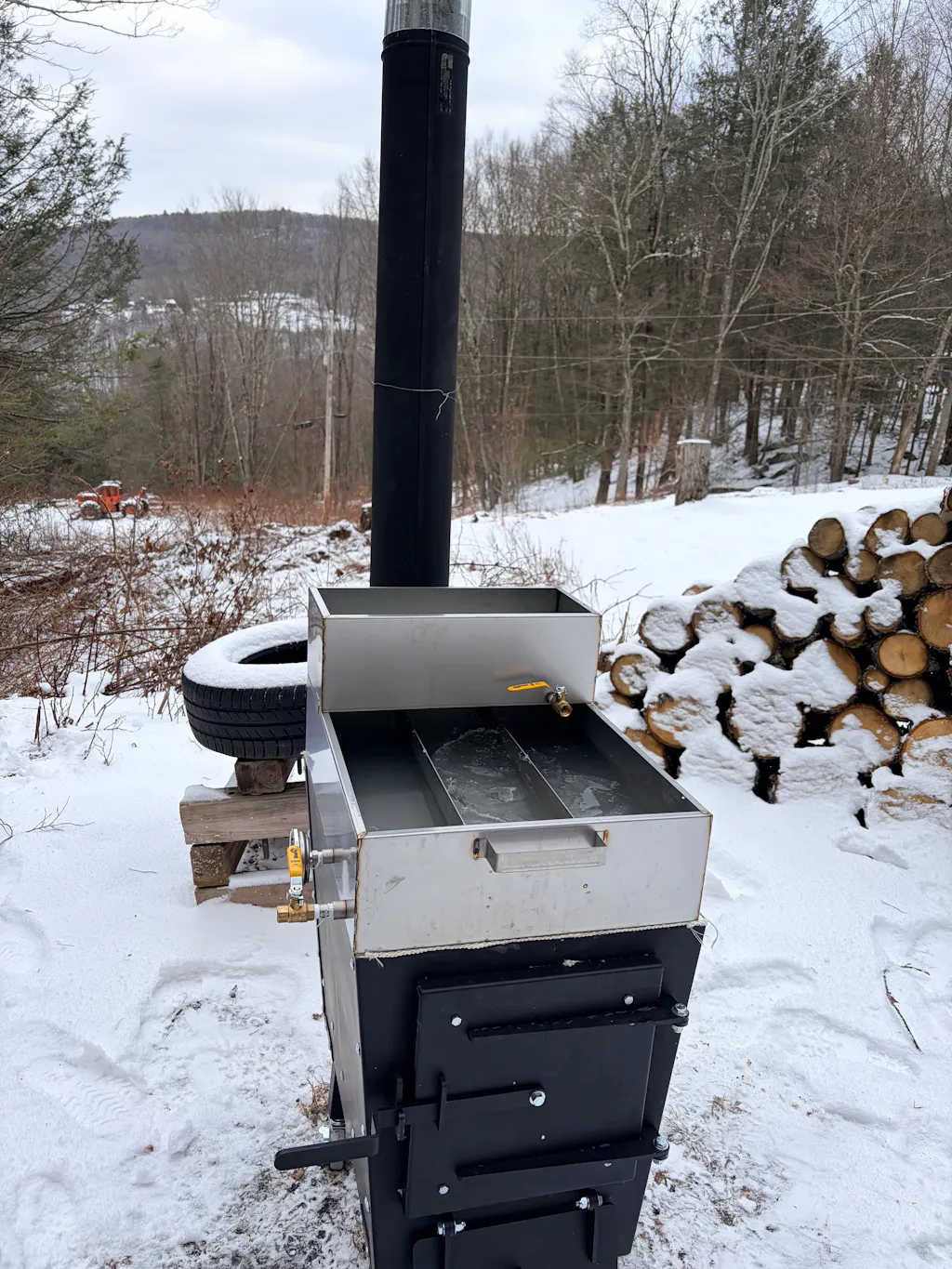

It takes some time to put the evaporator together with all the nuts/bolts but the instructions were clear and if followed the unit comes together nicely. I had 21 taps and collected 400 gallons of sap to process. At first, it seemed like I was only getting half the of evaporation rate but after posing a question everyone encouraged me to stoke the firebox to the top which I did and achieved about 4-5 gallons per hour. I was very happy as a first timer with this system and it suited me well.

Fantastic Product - Easy to Use, Many Fun Memories and Worth Every Penny.

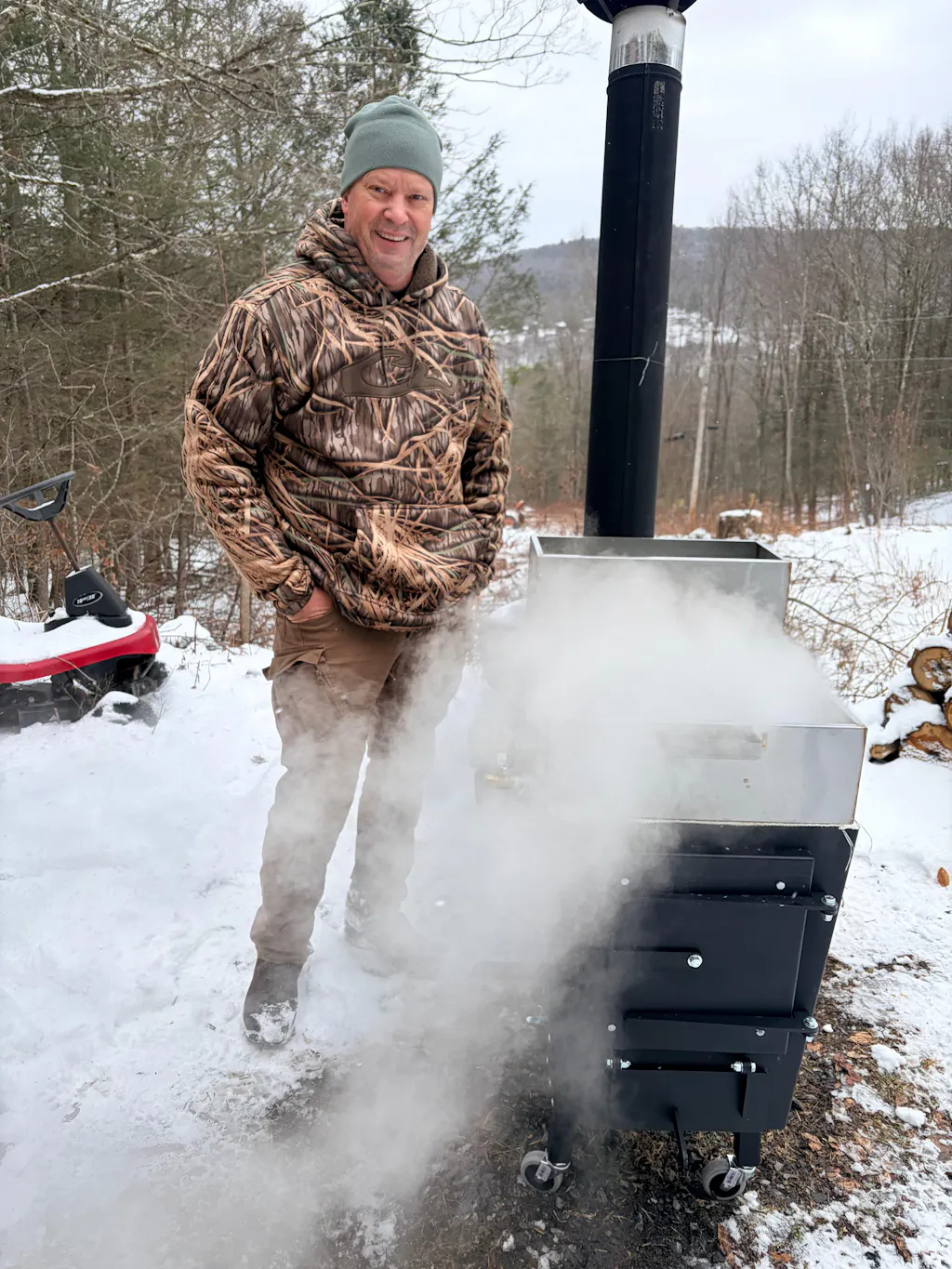

This is an extremely well-designed product that works like a charm. It was so much fun to build and use this maple season. The only thing I didn't love was preparing and painting the parts. Do yourself a favor and get a can shaker for your sawzall, but more importantly, get a trigger handle to use with the paint cans. It was tons of fun to assemble and all the parts fit perfect. When it comes to boiling sap, this thing performs like a beast! If you're thinking about buying this, just do it!

5 Stars – Perfect for Backyard Sugaring!

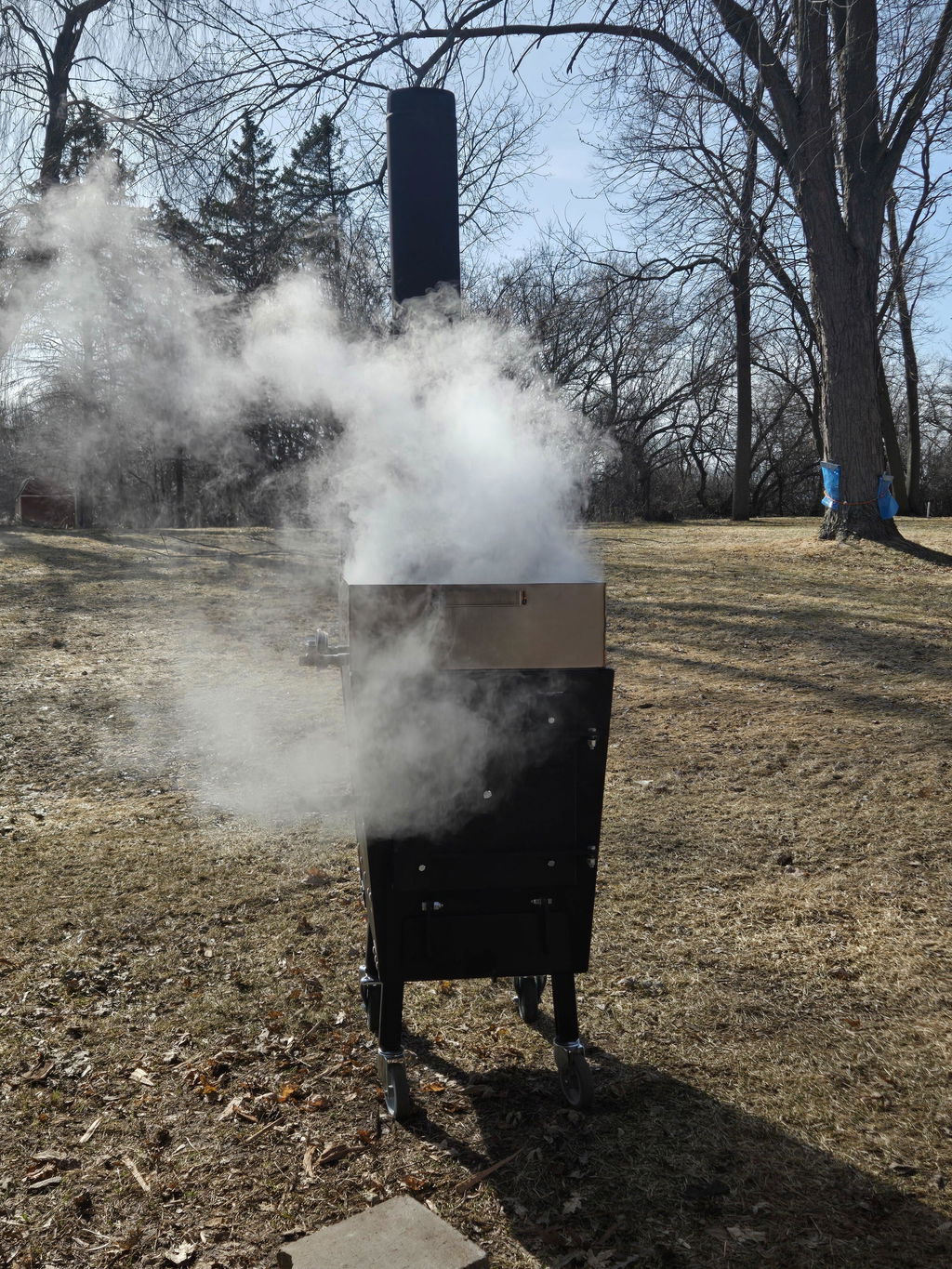

We absolutely loved this evaporator! It was the perfect addition to our backyard maple syrup operation—efficient, easy to use, and well-built. It handled our sap beautifully and made the entire process enjoyable. I’d highly recommend it to anyone looking for a reliable and effective evaporator for small-scale syrup production.
